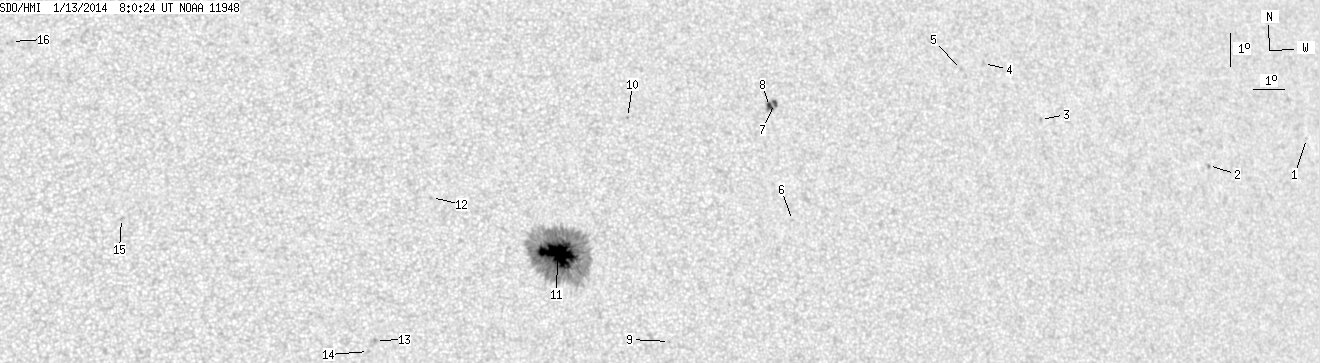

SDO HMI 2014-01-13 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.05 | 298.31 | 23.50 | 159.07 | 5.83 | 45.90 | 18.82 | 298.62 | 0.3660 | -902.0 | -427.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.50 | 10.06 | 72.21 | 45.14 | 288.03 | 0.7363 | -493.0 | -418.6 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 9.02 | 68.02 | 40.95 | 288.23 | 0.6838 | -630.0 | -612.2 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 10.12 | 61.79 | 34.71 | 292.91 | 0.6109 | -753.0 | -609.4 | |
| 0.00 | 2.04 | 0.00 | 1.26 | 11.75 | 59.94 | 32.86 | 296.58 | 0.5963 | -707.0 | -598.2 | |
| 0.00 | 1.62 | 0.00 | 0.98 | 11.53 | 59.12 | 32.05 | 296.81 | 0.5847 | -551.0 | -395.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 6.73 | 52.90 | 25.83 | 293.15 | 0.4725 | -691.0 | -598.9 | |
| 1.79 | 8.50 | 1.01 | 4.82 | 10.25 | 52.56 | 25.49 | 300.08 | 0.4914 | -734.8 | -702.1 | |
| 2.98 | -7.00 | 1.69 | -7.00 | 10.16 | 52.39 | 25.32 | 300.07 | 0.4884 | -959.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 2.99 | 48.77 | 21.70 | 288.40 | 0.3908 | 685.0 | 576.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 9.68 | 47.73 | 20.66 | 304.40 | 0.4233 | -848.0 | -767.4 | |
| 39.28 | 273.63 | 20.80 | 144.98 | 5.53 | 45.32 | 18.24 | 298.35 | 0.3556 | -1413.7 | -444.1 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 7.13 | 41.47 | 14.40 | 308.60 | 0.3172 | -748.0 | -593.1 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 2.82 | 39.67 | 12.60 | 299.54 | 0.2516 | 997.0 | 765.0 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 2.49 | 39.46 | 12.38 | 298.80 | 0.2456 | 842.0 | 669.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 6.38 | 32.11 | 5.04 | 334.91 | 0.2067 | 990.0 | 676.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 11.74 | 28.87 | 1.80 | 353.67 | 0.2805 | 752.0 | 650.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
