SDO HMI 2014-01-13 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.23 | 0.00 | 3.60 | -9.84 | 26.53 | -0.54 | 159.95 | 0.1090 | 892.4 | 701.3 | |
|
previous
or next observation for the same group /

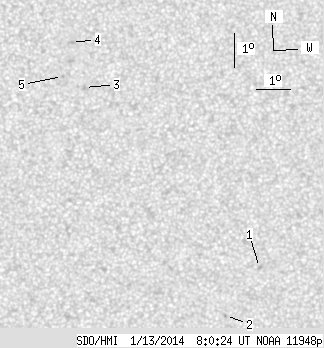

back to the solar disc SDO HMI 2014-01-13 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.85 | -13.21 | 30.04 | 2.96 | 198.13 | 0.1624 | 779.0 | 640.6 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -14.64 | 29.02 | 1.94 | 190.42 | 0.1821 | 871.0 | 697.9 | |
| 0.00 | 1.28 | 0.00 | 0.63 | -7.86 | 24.78 | -2.29 | 146.97 | 0.0730 | 981.0 | 768.1 | |
| 0.00 | 2.04 | 0.00 | 1.01 | -6.54 | 24.40 | -2.67 | 129.22 | 0.0600 | 913.0 | 696.5 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -7.54 | 24.13 | -2.94 | 137.33 | 0.0755 | 918.0 | 733.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
