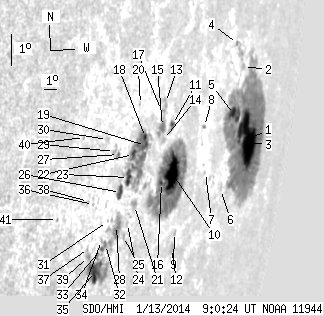

SDO HMI 2014-01-13 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.75 | 738.86 | 248.77 | 1348.88 | -9.90 | 101.09 | 74.56 | 260.89 | 0.9600 | 306.9 | 109.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.55 | 357.89 | 123.00 | 824.56 | -9.25 | 104.81 | 78.28 | 261.47 | 0.9782 | 259.9 | 81.7 | |
| 0.00 | 2.13 | 0.00 | 4.36 | -7.20 | 102.92 | 76.39 | 263.65 | 0.9713 | 448.0 | 379.7 | |
| 1.28 | -1.00 | 2.74 | -1.00 | -9.39 | 103.76 | 77.23 | 261.37 | 0.9743 | 713.1 | 999999 | |
| 0.77 | 8.42 | 1.46 | 16.51 | -6.59 | 101.88 | 75.35 | 264.33 | 0.9670 | 127.8 | 427.1 | |
| 11.82 | -1.00 | 23.59 | -1.00 | -8.66 | 102.61 | 76.08 | 262.17 | 0.9697 | 717.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 1.33 | -10.92 | 102.42 | 75.89 | 259.84 | 0.9686 | 447.0 | 433.5 | |
| 0.00 | 0.51 | 0.00 | 0.88 | -10.56 | 100.40 | 73.87 | 260.27 | 0.9594 | 56.0 | 105.5 | |
| 0.60 | 1.11 | 0.98 | 1.82 | -9.24 | 99.52 | 72.99 | 261.67 | 0.9552 | 343.1 | 324.5 | |
| 0.00 | 1.45 | 0.00 | 2.26 | -12.51 | 98.47 | 71.94 | 258.27 | 0.9494 | -335.0 | -204.8 | |
| 26.53 | 168.78 | 38.87 | 246.00 | -10.82 | 97.24 | 70.71 | 260.07 | 0.9427 | 586.3 | 148.7 | |
| 2.13 | 5.19 | 3.02 | 7.35 | -9.40 | 96.53 | 70.00 | 261.59 | 0.9387 | 529.6 | 439.8 | |
| 0.00 | 3.57 | 0.00 | 5.58 | -12.99 | 98.51 | 71.98 | 257.76 | 0.9496 | -435.0 | -436.2 | |
| 0.00 | 3.40 | 0.00 | 4.65 | -8.80 | 95.67 | 69.14 | 262.25 | 0.9335 | -86.0 | -22.0 | |
| 0.00 | 2.72 | 0.00 | 3.77 | -9.89 | 95.97 | 69.44 | 261.08 | 0.9353 | 416.0 | 420.3 | |
| 3.91 | 9.78 | 5.36 | 13.36 | -9.51 | 95.71 | 69.19 | 261.48 | 0.9338 | 620.5 | 500.6 | |
| 0.94 | -10.00 | 1.32 | -10.00 | -11.14 | 96.43 | 69.90 | 259.73 | 0.9379 | 818.1 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.81 | -9.06 | 95.43 | 68.90 | 261.98 | 0.9321 | -25.0 | -18.4 | |
| 2.13 | 78.91 | 2.75 | 101.02 | -9.93 | 94.49 | 67.96 | 261.05 | 0.9259 | 427.3 | 166.3 | |
| 2.81 | -18.00 | 3.65 | -18.00 | -10.16 | 94.59 | 68.06 | 260.80 | 0.9266 | 326.3 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.53 | -9.00 | 93.71 | 67.18 | 262.08 | 0.9209 | -318.0 | -318.0 | |
| 0.00 | 4.76 | 0.00 | 6.19 | -11.97 | 94.57 | 68.04 | 258.85 | 0.9264 | -94.0 | -12.4 | |
| 3.91 | -18.00 | 4.93 | -18.00 | -10.49 | 93.77 | 67.25 | 260.45 | 0.9212 | -458.6 | 999999 | |
| 6.04 | -18.00 | 7.58 | -18.00 | -11.18 | 93.70 | 67.17 | 259.70 | 0.9207 | -429.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 1.10 | -12.53 | 94.30 | 67.77 | 258.24 | 0.9247 | -233.0 | -207.7 | |
| 0.00 | 2.21 | 0.00 | 2.84 | -12.93 | 94.20 | 67.67 | 257.81 | 0.9241 | 104.0 | 65.5 | |
| 5.10 | 6.80 | 6.30 | 8.39 | -11.66 | 93.30 | 66.78 | 259.18 | 0.9180 | -388.8 | -243.3 | |
| 0.68 | 2.72 | 0.82 | 3.28 | -10.57 | 92.66 | 66.13 | 260.37 | 0.9136 | -415.6 | -396.2 | |
| 0.00 | 16.16 | 0.00 | 20.13 | -12.64 | 93.49 | 66.96 | 258.11 | 0.9193 | 335.0 | 256.4 | |
| 0.00 | 1.87 | 0.00 | 2.23 | -10.50 | 92.33 | 65.80 | 260.45 | 0.9113 | -568.0 | -561.8 | |
| 0.00 | 2.04 | 0.00 | 2.38 | -10.18 | 91.69 | 65.16 | 260.80 | 0.9067 | -296.0 | -342.8 | |
| 0.00 | 0.60 | 0.00 | 0.72 | -12.57 | 92.76 | 66.23 | 258.18 | 0.9144 | -195.0 | -187.6 | |
| 0.77 | 46.94 | 0.93 | 57.21 | -13.25 | 92.97 | 66.44 | 257.43 | 0.9159 | -57.2 | 223.1 | |
| 1.11 | -32.00 | 1.34 | -32.00 | -13.39 | 92.73 | 66.21 | 257.28 | 0.9143 | -273.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.33 | -13.16 | 92.61 | 66.08 | 257.53 | 0.9134 | -285.0 | -281.1 | |
| 16.67 | -32.00 | 20.13 | -32.00 | -14.09 | 92.67 | 66.14 | 256.51 | 0.9139 | 621.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.28 | -12.14 | 91.52 | 64.99 | 258.63 | 0.9055 | -536.0 | -430.3 | |
| 0.00 | 0.34 | 0.00 | 0.40 | -13.45 | 91.80 | 65.27 | 257.19 | 0.9077 | -384.0 | -347.2 | |
| 0.00 | 0.85 | 0.00 | 0.97 | -12.08 | 91.13 | 64.60 | 258.69 | 0.9027 | -258.0 | -325.9 | |
| 0.00 | 3.23 | 0.00 | 3.80 | -13.69 | 91.92 | 65.39 | 256.93 | 0.9087 | 231.0 | 156.2 | |
| 0.00 | 0.68 | 0.00 | 0.75 | -10.23 | 90.10 | 63.57 | 260.74 | 0.8948 | -467.0 | -373.1 | |
| 0.00 | 1.02 | 0.00 | 1.09 | -12.75 | 89.29 | 62.77 | 257.90 | 0.8889 | -439.0 | -380.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
