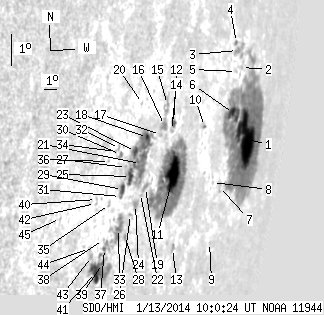

SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152.90 | 718.96 | 273.97 | 1359.00 | -9.91 | 101.14 | 75.16 | 260.86 | 0.9627 | 272.3 | 100.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.51 | 341.38 | 124.08 | 823.71 | -9.26 | 104.87 | 78.89 | 261.43 | 0.9803 | 209.2 | 74.4 | |
| 0.00 | 1.45 | 0.00 | 3.05 | -7.26 | 102.78 | 76.80 | 263.57 | 0.9729 | 445.0 | 399.9 | |
| 1.96 | 9.18 | 3.92 | 18.76 | -6.81 | 102.03 | 76.05 | 264.08 | 0.9700 | 507.9 | 510.2 | |
| 1.19 | 1.79 | 2.34 | 3.51 | -6.59 | 101.80 | 75.82 | 264.32 | 0.9690 | 115.5 | 117.4 | |
| 0.00 | 0.60 | 0.00 | 1.21 | -7.42 | 102.22 | 76.24 | 263.44 | 0.9706 | 431.0 | 440.0 | |
| 11.31 | -1.00 | 23.44 | -1.00 | -8.65 | 102.55 | 76.57 | 262.15 | 0.9718 | 699.2 | 999999 | |
| 0.00 | 2.98 | 0.00 | 6.02 | -10.86 | 102.32 | 76.34 | 259.89 | 0.9705 | 439.0 | 389.5 | |
| 0.00 | 1.02 | 0.00 | 1.94 | -10.81 | 101.40 | 75.42 | 259.97 | 0.9665 | 409.0 | 341.5 | |
| 0.00 | 0.51 | 0.00 | 1.03 | -12.54 | 102.46 | 76.48 | 258.15 | 0.9709 | 105.0 | 77.5 | |
| 0.68 | 1.28 | 1.16 | 2.17 | -9.27 | 99.50 | 73.51 | 261.63 | 0.9579 | 404.5 | 323.6 | |
| 28.74 | 161.29 | 43.28 | 241.25 | -10.86 | 97.27 | 71.29 | 260.01 | 0.9460 | 514.7 | 145.7 | |
| 1.96 | 3.06 | 2.85 | 4.46 | -9.39 | 96.51 | 70.53 | 261.59 | 0.9418 | 512.8 | 398.0 | |
| 0.00 | 2.72 | 0.00 | 4.38 | -13.00 | 98.57 | 72.59 | 257.74 | 0.9528 | -543.0 | -467.0 | |
| 0.00 | 1.36 | 0.00 | 1.98 | -9.61 | 96.43 | 70.45 | 261.36 | 0.9413 | 469.0 | 387.6 | |
| 0.51 | 7.31 | 0.72 | 10.26 | -8.88 | 95.74 | 69.76 | 262.15 | 0.9373 | 170.0 | 188.0 | |
| 3.49 | 7.14 | 4.90 | 10.03 | -9.50 | 95.76 | 69.78 | 261.48 | 0.9373 | 586.6 | 521.1 | |
| 0.00 | 1.62 | 0.00 | 2.25 | -9.79 | 95.54 | 69.56 | 261.18 | 0.9360 | 484.0 | 422.2 | |
| 2.04 | 85.20 | 2.71 | 111.13 | -9.95 | 94.51 | 68.53 | 261.03 | 0.9296 | 300.6 | 84.4 | |
| 0.00 | 3.74 | 0.00 | 5.08 | -11.41 | 95.06 | 69.07 | 259.45 | 0.9329 | 22.0 | 111.7 | |
| 0.00 | 0.94 | 0.00 | 1.20 | -8.99 | 93.70 | 67.72 | 262.08 | 0.9245 | -360.0 | -341.3 | |
| 14.28 | -18.00 | 18.84 | -18.00 | -10.74 | 94.30 | 68.32 | 260.17 | 0.9282 | 323.6 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.69 | -11.61 | 94.74 | 68.76 | 259.23 | 0.9309 | 139.0 | 144.5 | |
| 3.83 | -18.00 | 4.92 | -18.00 | -10.42 | 93.74 | 67.76 | 260.52 | 0.9246 | -403.6 | 999999 | |
| 1.45 | 4.85 | 1.92 | 6.44 | -11.96 | 94.51 | 68.52 | 258.86 | 0.9295 | -57.1 | -52.3 | |
| 5.61 | -18.00 | 7.20 | -18.00 | -11.18 | 93.70 | 67.71 | 259.71 | 0.9243 | -448.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.23 | -12.28 | 94.27 | 68.28 | 258.51 | 0.9280 | -264.0 | -191.1 | |
| 0.00 | 1.87 | 0.00 | 2.36 | -10.94 | 93.26 | 67.28 | 259.97 | 0.9214 | -523.0 | -416.1 | |
| 0.00 | 2.47 | 0.00 | 3.24 | -12.98 | 94.24 | 68.26 | 257.76 | 0.9279 | 104.0 | 58.0 | |
| 3.23 | -18.00 | 4.08 | -18.00 | -11.60 | 93.26 | 67.28 | 259.25 | 0.9214 | -487.2 | 999999 | |
| 1.11 | 2.38 | 1.36 | 2.93 | -10.59 | 92.64 | 66.66 | 260.35 | 0.9172 | -463.6 | -383.5 | |
| 0.34 | -18.00 | 0.43 | -18.00 | -11.81 | 93.21 | 67.23 | 259.02 | 0.9211 | -301.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.87 | -10.42 | 92.49 | 66.51 | 260.53 | 0.9162 | -508.0 | -461.8 | |
| 8.50 | 17.86 | 10.87 | 22.74 | -12.75 | 93.55 | 67.57 | 258.00 | 0.9233 | 371.5 | 218.2 | |
| 0.00 | 0.94 | 0.00 | 1.13 | -10.53 | 92.24 | 66.25 | 260.42 | 0.9144 | -534.0 | -511.5 | |
| 0.00 | 1.62 | 0.00 | 1.98 | -12.10 | 92.50 | 66.52 | 258.70 | 0.9163 | -256.0 | -205.1 | |
| 0.00 | 0.60 | 0.00 | 0.71 | -10.85 | 91.92 | 65.94 | 260.07 | 0.9122 | -520.0 | -471.3 | |
| 1.02 | 42.34 | 1.26 | 52.58 | -13.41 | 92.80 | 66.82 | 257.27 | 0.9185 | -261.0 | 217.5 | |
| 0.00 | 1.19 | 0.00 | 1.46 | -13.15 | 92.59 | 66.60 | 257.55 | 0.9170 | -207.0 | -233.4 | |
| 1.02 | -37.00 | 1.27 | -37.00 | -13.85 | 92.90 | 66.92 | 256.79 | 0.9192 | -100.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.90 | -12.02 | 91.49 | 65.50 | 258.77 | 0.9092 | -339.0 | -354.9 | |
| 10.12 | -37.00 | 12.42 | -37.00 | -14.15 | 92.53 | 66.55 | 256.45 | 0.9168 | 749.5 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -12.14 | 91.47 | 65.49 | 258.64 | 0.9091 | -312.0 | -279.0 | |
| 0.00 | 2.47 | 0.00 | 2.96 | -13.71 | 91.97 | 65.99 | 256.93 | 0.9128 | 225.0 | 176.8 | |
| 0.00 | 1.02 | 0.00 | 1.22 | -13.48 | 91.70 | 65.72 | 257.17 | 0.9109 | -263.0 | -257.3 | |
| 0.00 | 0.77 | 0.00 | 0.84 | -12.74 | 89.28 | 63.29 | 257.92 | 0.8930 | -475.0 | -431.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
