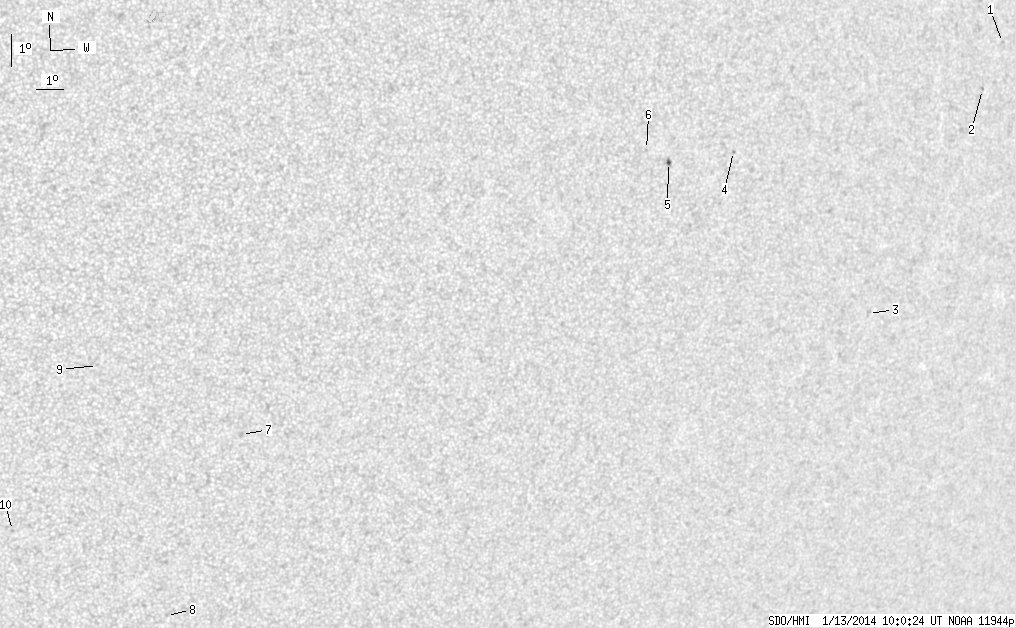

SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 15.15 | 0.86 | 9.83 | -20.68 | 61.57 | 35.59 | 238.92 | 0.6349 | -432.6 | -238.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.91 | -12.83 | 75.56 | 49.58 | 256.87 | 0.7645 | 468.0 | 400.6 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -14.28 | 75.03 | 49.04 | 254.91 | 0.7604 | -515.0 | -514.6 | |
| 0.00 | 2.64 | 0.00 | 1.95 | -21.28 | 72.22 | 46.24 | 245.08 | 0.7444 | 624.0 | 461.2 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -16.66 | 65.01 | 39.03 | 249.21 | 0.6476 | -603.0 | -553.0 | |
| 1.36 | 2.55 | 0.86 | 1.60 | -17.10 | 62.57 | 36.59 | 247.61 | 0.6184 | -760.4 | -613.6 | |
| 0.00 | 1.19 | 0.00 | 0.74 | -16.75 | 61.65 | 35.67 | 247.79 | 0.6054 | -705.0 | -551.6 | |
| 0.00 | 2.04 | 0.00 | 1.18 | -26.03 | 48.87 | 22.89 | 223.04 | 0.5142 | -757.0 | -566.2 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -31.96 | 47.48 | 21.49 | 213.62 | 0.5636 | -743.0 | -528.3 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -23.98 | 43.53 | 17.54 | 219.12 | 0.4384 | -616.0 | -469.6 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -29.29 | 41.38 | 15.40 | 208.67 | 0.4847 | -764.0 | -627.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
