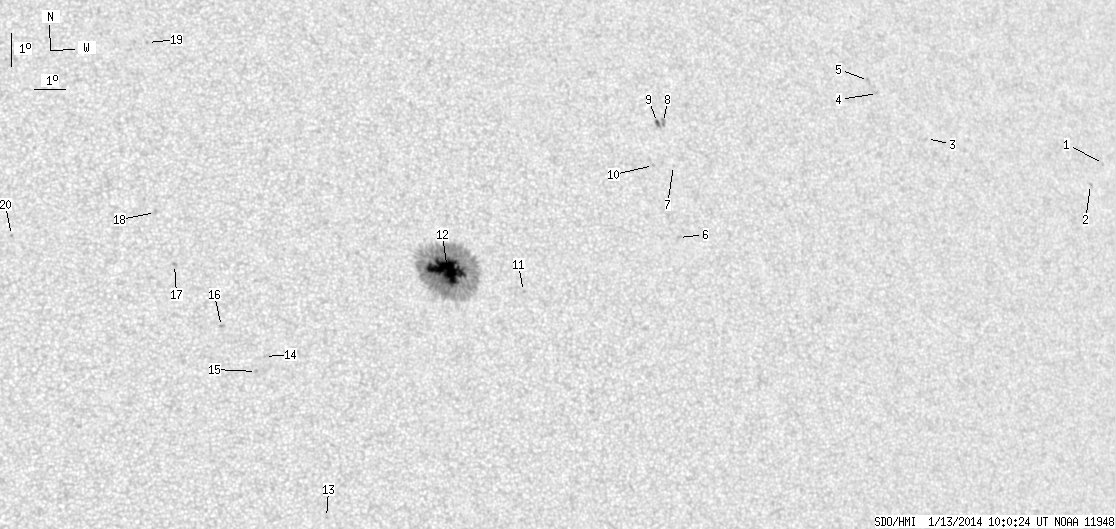

SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.51 | 299.67 | 24.85 | 160.69 | 5.76 | 45.82 | 19.83 | 297.21 | 0.3800 | -756.2 | -386.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.53 | 9.66 | 68.71 | 42.72 | 288.40 | 0.7073 | -480.0 | -444.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 8.99 | 68.08 | 42.09 | 287.73 | 0.6975 | -627.0 | -580.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 10.08 | 61.90 | 35.91 | 292.18 | 0.6260 | -721.0 | -619.2 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 11.38 | 60.27 | 34.29 | 295.09 | 0.6121 | -522.0 | -455.1 | |
| 0.00 | 2.98 | 0.00 | 1.86 | 11.77 | 60.00 | 34.01 | 295.85 | 0.6108 | -720.0 | -566.1 | |
| 0.00 | 2.04 | 0.00 | 1.16 | 6.73 | 52.90 | 26.91 | 292.32 | 0.4880 | -747.0 | -591.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 8.90 | 52.89 | 26.90 | 296.37 | 0.5010 | -567.0 | -410.6 | |
| 0.00 | 2.55 | 0.00 | 1.46 | 10.20 | 52.66 | 26.68 | 298.88 | 0.5067 | -814.0 | -658.9 | |
| 1.28 | 2.72 | 0.73 | 1.56 | 10.20 | 52.46 | 26.48 | 299.05 | 0.5040 | -921.7 | -805.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 8.88 | 52.22 | 26.23 | 296.91 | 0.4918 | -804.0 | -673.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 4.96 | 47.76 | 21.78 | 292.99 | 0.4033 | 680.0 | 603.6 | |
| 45.23 | 271.91 | 24.12 | 145.03 | 5.52 | 45.38 | 19.39 | 296.90 | 0.3723 | -1349.6 | -420.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -1.89 | 41.54 | 15.56 | 278.62 | 0.2724 | 714.0 | 608.8 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 2.84 | 39.67 | 13.68 | 297.60 | 0.2678 | 795.0 | 682.6 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 2.39 | 39.42 | 13.44 | 296.51 | 0.2606 | 906.0 | 689.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 3.71 | 38.38 | 12.39 | 302.98 | 0.2565 | 898.0 | 684.6 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 5.54 | 36.99 | 11.01 | 311.97 | 0.2567 | 769.0 | 655.0 | |
| 0.00 | 2.38 | 0.00 | 1.22 | 7.09 | 36.45 | 10.47 | 317.63 | 0.2688 | 394.0 | 320.4 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 12.26 | 36.38 | 10.39 | 328.27 | 0.3367 | 780.0 | 598.5 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 6.36 | 32.12 | 6.13 | 330.27 | 0.2151 | 889.0 | 731.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
