SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.24 | 181.20 | 23.12 | 92.61 | -17.93 | 30.19 | 4.21 | 196.39 | 0.2471 | 262.3 | 86.8 | |
|
previous
or next observation for the same group /

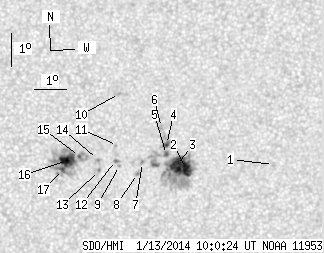

back to the solar disc SDO HMI 2014-01-13 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 0.96 | -17.98 | 34.49 | 8.50 | 210.79 | 0.2760 | 685.0 | 466.2 | |
| 11.73 | 79.33 | 6.01 | 40.66 | -18.13 | 31.77 | 5.79 | 201.94 | 0.2578 | 1177.2 | 400.0 | |
| 15.47 | -2.00 | 7.92 | -2.00 | -18.04 | 31.46 | 5.48 | 201.00 | 0.2544 | 1302.0 | 999999 | |
| 1.79 | 6.46 | 0.91 | 3.30 | -17.40 | 31.13 | 5.15 | 200.78 | 0.2424 | 1162.4 | 859.1 | |
| 0.94 | 14.62 | 0.48 | 7.47 | -17.70 | 31.14 | 5.16 | 200.35 | 0.2473 | 1210.6 | 826.5 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -16.89 | 30.96 | 4.98 | 200.95 | 0.2333 | 849.0 | 770.4 | |
| 0.00 | 1.79 | 0.00 | 0.91 | -17.95 | 30.40 | 4.42 | 197.32 | 0.2472 | 845.0 | 610.0 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -18.29 | 30.25 | 4.27 | 196.37 | 0.2519 | 794.0 | 702.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -18.04 | 29.69 | 3.70 | 194.56 | 0.2454 | -686.0 | -608.6 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -15.87 | 29.65 | 3.66 | 197.13 | 0.2096 | 823.0 | 671.1 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -17.44 | 29.61 | 3.63 | 194.96 | 0.2351 | -617.0 | -531.3 | |
| 0.34 | 2.13 | 0.17 | 1.08 | -17.89 | 29.56 | 3.58 | 194.24 | 0.2424 | -1065.2 | -737.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -18.20 | 29.07 | 3.09 | 192.08 | 0.2455 | -963.0 | -822.3 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -17.87 | 29.00 | 3.02 | 192.12 | 0.2397 | -1027.0 | -826.8 | |
| 0.68 | 65.30 | 0.35 | 33.29 | -17.78 | 28.44 | 2.46 | 190.00 | 0.2364 | -1140.1 | -526.1 | |
| 12.84 | -15.00 | 6.54 | -15.00 | -17.90 | 28.07 | 2.09 | 188.43 | 0.2374 | -1264.6 | 999999 | |
| 1.45 | -15.00 | 0.74 | -15.00 | -18.17 | 27.92 | 1.94 | 187.67 | 0.2417 | -909.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
