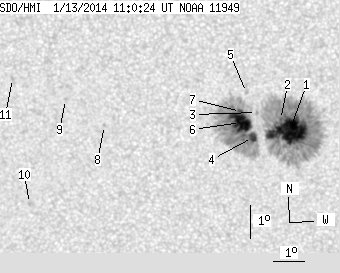

SDO HMI 2014-01-13 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.45 | 472.48 | 48.38 | 244.82 | -16.47 | 13.21 | -12.22 | 136.21 | 0.2945 | 1168.4 | 390.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.60 | 296.13 | 30.81 | 153.04 | -16.56 | 13.84 | -11.60 | 137.80 | 0.2882 | 1397.6 | 453.7 | |
| 0.94 | -1.00 | 0.48 | -1.00 | -16.22 | 13.58 | -11.86 | 136.35 | 0.2871 | 1057.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -16.00 | 12.84 | -12.60 | 134.10 | 0.2933 | 858.0 | 688.3 | |
| 5.87 | 167.75 | 3.05 | 87.23 | -16.75 | 12.66 | -12.77 | 135.58 | 0.3039 | 1170.6 | 321.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.39 | 12.56 | -12.87 | 131.93 | 0.2900 | 740.0 | 513.5 | |
| 24.91 | -4.00 | 12.94 | -4.00 | -16.29 | 12.31 | -13.12 | 133.72 | 0.3028 | 1324.3 | 999999 | |
| 2.13 | -4.00 | 1.10 | -4.00 | -15.96 | 12.34 | -13.10 | 132.93 | 0.2989 | 1091.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -16.29 | 7.98 | -17.45 | 126.08 | 0.3578 | -850.0 | -649.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -15.48 | 6.80 | -18.64 | 122.53 | 0.3669 | -815.0 | -666.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.59 | 5.28 | -20.15 | 127.43 | 0.4130 | -851.0 | -739.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -14.81 | 5.15 | -20.29 | 118.97 | 0.3848 | -907.0 | -703.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
