SDO HMI 2014-01-13 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.17 | 0.00 | 6.49 | 17.46 | 25.31 | -0.13 | 0.35 | 0.3755 | 356.9 | 348.8 | |
|
previous
or next observation for the same group /

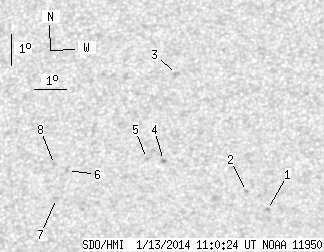

back to the solar disc SDO HMI 2014-01-13 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.67 | 15.77 | 28.89 | 3.46 | 350.44 | 0.3508 | -1014.0 | -806.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 16.34 | 28.26 | 2.82 | 352.39 | 0.3584 | -827.0 | -647.9 | |
| 0.00 | 2.72 | 0.00 | 1.48 | 20.08 | 26.13 | 0.69 | 358.44 | 0.4159 | 693.0 | 602.5 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 17.32 | 25.71 | 0.27 | 359.29 | 0.3714 | 944.0 | 710.4 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 17.38 | 25.18 | -0.25 | 0.65 | 0.3724 | 713.0 | 664.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 17.01 | 22.75 | -2.69 | 7.01 | 0.3690 | 762.0 | 655.2 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 16.13 | 22.42 | -3.01 | 8.21 | 0.3554 | 728.0 | 643.6 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 17.20 | 22.34 | -3.09 | 7.98 | 0.3730 | 856.0 | 691.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
