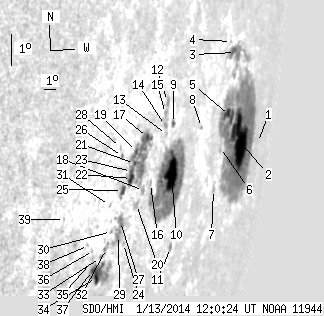

SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.36 | 655.53 | 254.60 | 1358.53 | -9.79 | 101.35 | 76.46 | 260.94 | 0.9685 | 270.3 | 106.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 4.10 | -9.07 | 108.38 | 83.49 | 261.39 | 0.9929 | -120.0 | -129.7 | |
| 47.44 | 305.20 | 128.20 | 811.37 | -9.28 | 104.76 | 79.88 | 261.36 | 0.9835 | 164.2 | 55.2 | |
| 11.48 | 29.41 | 25.53 | 67.60 | -6.83 | 102.38 | 77.50 | 263.99 | 0.9757 | 538.1 | 400.2 | |
| 0.00 | 0.68 | 0.00 | 1.43 | -6.55 | 101.69 | 76.81 | 264.31 | 0.9731 | -148.0 | -74.4 | |
| 10.12 | -2.00 | 22.78 | -2.00 | -8.69 | 102.70 | 77.81 | 262.07 | 0.9766 | 672.3 | 999999 | |
| 0.00 | 2.98 | 0.00 | 6.42 | -9.68 | 102.16 | 77.27 | 261.07 | 0.9744 | 287.0 | 266.0 | |
| 0.00 | 1.79 | 0.00 | 3.86 | -10.94 | 102.21 | 77.32 | 259.77 | 0.9744 | 388.0 | 335.2 | |
| 0.00 | 0.94 | 0.00 | 1.70 | -9.28 | 99.50 | 74.61 | 261.59 | 0.9631 | 439.0 | 388.5 | |
| 1.53 | 2.98 | 2.36 | 4.59 | -9.37 | 96.61 | 71.72 | 261.58 | 0.9485 | 473.4 | 371.1 | |
| 24.31 | 158.38 | 38.70 | 250.74 | -10.85 | 97.23 | 72.34 | 260.00 | 0.9517 | 496.4 | 126.8 | |
| 1.36 | 2.81 | 2.32 | 4.79 | -12.96 | 98.59 | 73.70 | 257.78 | 0.9584 | -446.4 | -402.6 | |
| 0.00 | 3.57 | 0.00 | 5.30 | -8.77 | 95.76 | 70.87 | 262.24 | 0.9438 | 103.0 | 122.4 | |
| 0.00 | 1.11 | 0.00 | 1.66 | -9.73 | 96.12 | 71.23 | 261.21 | 0.9458 | 536.0 | 510.1 | |
| 0.00 | 2.72 | 0.00 | 4.05 | -9.48 | 95.90 | 71.01 | 261.48 | 0.9446 | 614.0 | 567.1 | |
| 0.00 | 3.74 | 0.00 | 5.54 | -9.13 | 95.74 | 70.85 | 261.86 | 0.9437 | 392.0 | 406.5 | |
| 0.00 | 1.53 | 0.00 | 2.23 | -11.25 | 95.45 | 70.56 | 259.61 | 0.9418 | 340.0 | 320.6 | |
| 1.62 | 62.32 | 2.25 | 85.51 | -9.94 | 94.50 | 69.61 | 261.02 | 0.9363 | 470.6 | 193.6 | |
| 0.00 | 2.47 | 0.00 | 3.50 | -11.50 | 94.95 | 70.07 | 259.35 | 0.9389 | 160.0 | 170.0 | |
| 1.19 | -17.00 | 1.61 | -17.00 | -10.41 | 93.78 | 68.89 | 260.53 | 0.9318 | -472.9 | 999999 | |
| 0.00 | 3.91 | 0.00 | 5.46 | -11.94 | 94.59 | 69.70 | 258.88 | 0.9367 | -91.0 | 8.0 | |
| 1.36 | -17.00 | 1.84 | -17.00 | -10.77 | 93.79 | 68.90 | 260.14 | 0.9319 | -325.9 | 999999 | |
| 4.25 | -17.00 | 5.72 | -17.00 | -11.22 | 93.76 | 68.87 | 259.66 | 0.9317 | -313.4 | 999999 | |
| 1.11 | -17.00 | 1.49 | -17.00 | -11.01 | 93.66 | 68.77 | 259.88 | 0.9310 | -465.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.52 | -13.15 | 94.17 | 69.28 | 257.59 | 0.9342 | 99.0 | 38.9 | |
| 2.98 | 5.78 | 3.92 | 7.62 | -11.62 | 93.22 | 68.33 | 259.23 | 0.9282 | -403.5 | -260.4 | |
| 0.00 | 1.28 | 0.00 | 1.65 | -10.63 | 92.73 | 67.84 | 260.30 | 0.9251 | -427.0 | -390.5 | |
| 3.91 | 16.83 | 5.23 | 22.47 | -12.53 | 93.55 | 68.66 | 258.25 | 0.9303 | 352.6 | 315.1 | |
| 0.00 | 0.94 | 0.00 | 1.19 | -10.38 | 92.46 | 67.57 | 260.57 | 0.9233 | -407.0 | -419.4 | |
| 3.91 | -27.00 | 5.23 | -27.00 | -12.95 | 93.62 | 68.73 | 257.80 | 0.9308 | 436.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.66 | -12.87 | 92.99 | 68.10 | 257.88 | 0.9268 | -61.0 | -65.3 | |
| 0.00 | 1.11 | 0.00 | 1.41 | -12.12 | 92.42 | 67.53 | 258.68 | 0.9231 | -370.0 | -273.2 | |
| 0.00 | 4.08 | 0.00 | 5.30 | -13.39 | 92.89 | 68.00 | 257.31 | 0.9262 | -116.0 | -107.3 | |
| 0.43 | 1.45 | 0.55 | 1.86 | -13.68 | 92.57 | 67.68 | 256.99 | 0.9242 | -370.4 | -288.2 | |
| 4.34 | 31.80 | 5.58 | 41.23 | -14.29 | 92.62 | 67.73 | 256.34 | 0.9246 | 748.7 | 377.4 | |
| 0.00 | 0.43 | 0.00 | 0.53 | -13.78 | 92.07 | 67.18 | 256.88 | 0.9209 | 210.0 | 196.4 | |
| 0.00 | 0.60 | 0.00 | 0.74 | -13.52 | 91.92 | 67.03 | 257.16 | 0.9199 | -309.0 | -292.7 | |
| 1.02 | -34.00 | 1.29 | -34.00 | -14.10 | 92.18 | 67.29 | 256.53 | 0.9217 | 622.9 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.73 | -13.40 | 91.46 | 66.57 | 257.28 | 0.9168 | -244.0 | -270.7 | |
| 0.00 | 0.68 | 0.00 | 0.77 | -12.75 | 89.36 | 64.47 | 257.94 | 0.9018 | -448.0 | -388.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
