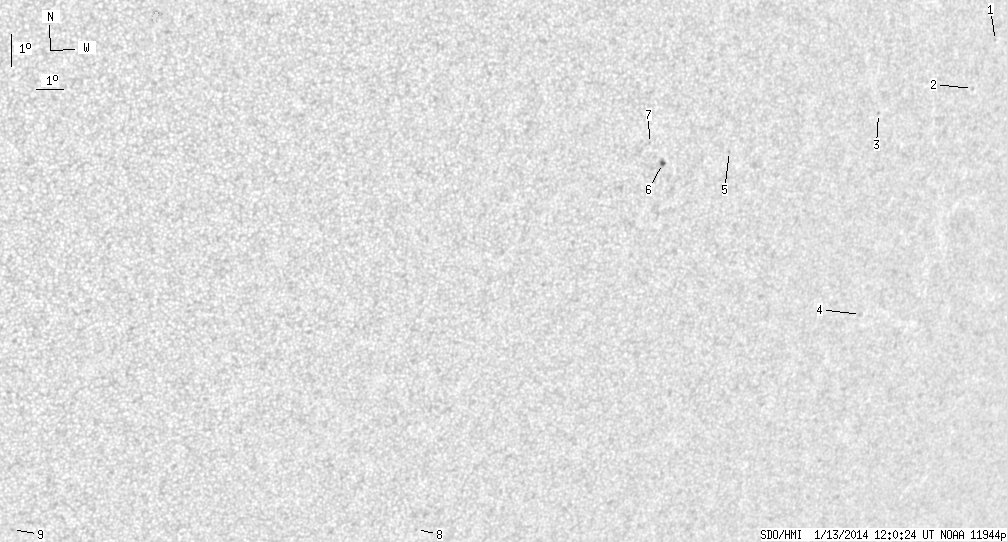

SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 11.92 | 0.81 | 8.05 | -19.00 | 64.93 | 40.04 | 244.57 | 0.6748 | -355.0 | -269.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.40 | -12.77 | 75.63 | 50.74 | 257.08 | 0.7770 | 526.0 | 386.7 | |
| 0.00 | 1.19 | 0.00 | 0.92 | -14.25 | 74.96 | 50.07 | 255.08 | 0.7714 | -436.0 | -494.5 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -15.23 | 70.93 | 46.04 | 253.12 | 0.7282 | -567.0 | -488.8 | |
| 0.00 | 1.96 | 0.00 | 1.47 | -21.32 | 72.25 | 47.36 | 245.36 | 0.7563 | 615.0 | 541.0 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -16.67 | 65.03 | 40.15 | 249.56 | 0.6615 | -605.0 | -448.5 | |
| 1.28 | 3.15 | 0.81 | 2.00 | -17.15 | 62.49 | 37.60 | 247.94 | 0.6314 | -734.9 | -567.9 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -16.58 | 61.85 | 36.97 | 248.59 | 0.6214 | -652.0 | -587.4 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -28.89 | 56.28 | 31.40 | 227.05 | 0.6254 | -617.0 | -471.7 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -29.30 | 41.41 | 16.52 | 210.32 | 0.4933 | -796.0 | -690.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
