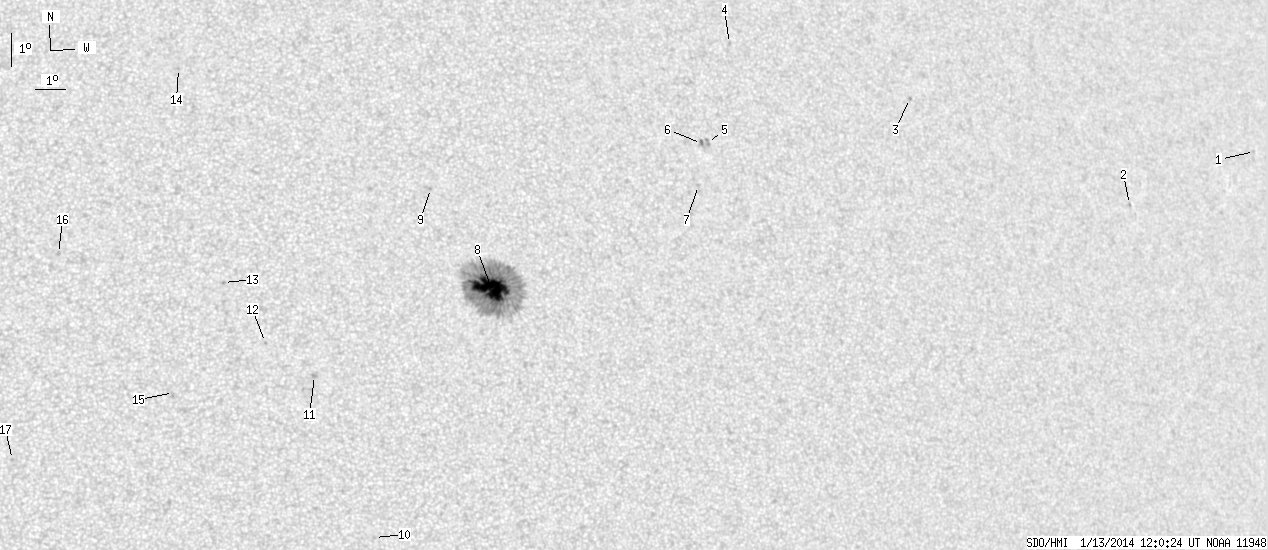

SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.12 | 286.44 | 23.69 | 154.49 | 5.73 | 45.61 | 20.72 | 296.07 | 0.3925 | -793.6 | -391.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.60 | 10.91 | 73.95 | 49.06 | 287.79 | 0.7813 | -562.0 | -419.0 | |
| 0.00 | 1.19 | 0.00 | 0.84 | 8.98 | 68.16 | 43.27 | 287.28 | 0.7114 | -609.0 | -569.7 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 11.81 | 60.04 | 35.15 | 295.21 | 0.6252 | -764.0 | -646.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 13.25 | 53.81 | 28.93 | 301.95 | 0.5571 | -630.0 | -482.7 | |
| 0.00 | 3.23 | 0.00 | 1.87 | 10.18 | 52.71 | 27.82 | 297.85 | 0.5216 | -765.0 | -591.1 | |
| 0.00 | 2.38 | 0.00 | 1.38 | 10.14 | 52.50 | 27.61 | 297.95 | 0.5186 | -950.0 | -780.8 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 8.86 | 52.29 | 27.40 | 295.87 | 0.5074 | -829.0 | -728.7 | |
| 44.12 | 264.14 | 23.69 | 141.89 | 5.55 | 45.35 | 20.46 | 295.72 | 0.3879 | -1353.5 | -422.1 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 8.51 | 43.56 | 18.67 | 304.68 | 0.3868 | -852.0 | -773.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -1.93 | 41.61 | 16.72 | 277.83 | 0.2916 | 812.0 | 596.6 | |
| 0.00 | 2.38 | 0.00 | 1.23 | 2.83 | 39.79 | 14.90 | 295.58 | 0.2860 | 855.0 | 790.2 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 3.78 | 38.31 | 13.42 | 301.14 | 0.2718 | 757.0 | 636.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 5.55 | 37.07 | 12.18 | 309.12 | 0.2720 | 937.0 | 793.1 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 12.02 | 35.91 | 11.03 | 326.35 | 0.3390 | 809.0 | 653.5 | |
| 0.00 | 0.34 | 0.00 | 0.17 | 2.25 | 35.51 | 10.63 | 301.80 | 0.2178 | 497.0 | 450.8 | |
| 0.00 | 1.87 | 0.00 | 0.95 | 6.36 | 32.12 | 7.24 | 326.03 | 0.2251 | 995.0 | 723.1 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 0.22 | 30.71 | 5.82 | 308.24 | 0.1297 | 863.0 | 590.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
