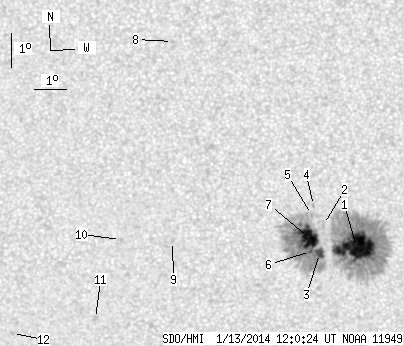

SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.35 | 467.43 | 50.31 | 241.80 | -16.49 | 13.16 | -11.73 | 137.43 | 0.2891 | 1106.9 | 375.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.25 | 287.86 | 32.64 | 148.50 | -16.57 | 13.82 | -11.07 | 139.11 | 0.2823 | 1368.5 | 455.1 | |
| 0.00 | 2.64 | 0.00 | 1.36 | -15.89 | 12.83 | -12.06 | 135.03 | 0.2856 | 789.0 | 638.1 | |
| 6.04 | 166.63 | 3.13 | 86.49 | -16.76 | 12.65 | -12.24 | 136.78 | 0.2978 | 1159.0 | 296.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.31 | 12.55 | -12.34 | 132.88 | 0.2825 | 627.0 | 534.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.58 | 12.47 | -12.42 | 133.42 | 0.2864 | 166.0 | 205.8 | |
| 1.11 | -3.00 | 0.57 | -3.00 | -16.70 | 12.37 | -12.52 | 136.00 | 0.3003 | 899.4 | 999999 | |
| 26.95 | -3.00 | 13.97 | -3.00 | -16.27 | 12.33 | -12.55 | 134.88 | 0.2958 | 1296.1 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -10.34 | 8.44 | -16.45 | 111.00 | 0.2997 | -789.0 | -619.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.31 | 8.01 | -16.88 | 126.98 | 0.3504 | -917.0 | -743.9 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -16.21 | 6.34 | -18.55 | 124.35 | 0.3716 | -750.0 | -603.7 | |
| 0.00 | 2.30 | 0.00 | 1.24 | -18.58 | 5.26 | -19.62 | 128.08 | 0.4062 | -786.0 | -698.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -18.95 | 2.44 | -22.45 | 125.45 | 0.4452 | -713.0 | -552.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
