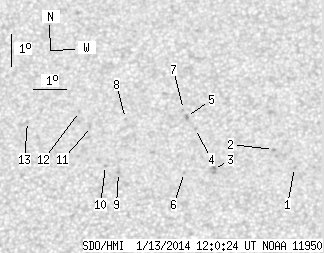

SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.41 | 0.00 | 7.61 | 16.39 | 25.44 | 0.56 | 358.41 | 0.3580 | 294.2 | 70.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 15.74 | 28.99 | 4.10 | 348.69 | 0.3523 | -1004.0 | -795.8 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 16.31 | 28.35 | 3.47 | 350.67 | 0.3595 | -774.0 | -576.2 | |
| 0.00 | 3.66 | 0.00 | 1.93 | 15.67 | 26.50 | 1.61 | 355.48 | 0.3455 | -406.0 | -562.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 16.97 | 25.96 | 1.07 | 357.19 | 0.3661 | 934.0 | 767.8 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 17.35 | 25.68 | 0.80 | 357.95 | 0.3721 | 958.0 | 817.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 15.58 | 25.61 | 0.73 | 357.95 | 0.3431 | -703.0 | -487.5 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 17.57 | 25.59 | 0.70 | 358.20 | 0.3756 | 612.0 | 477.1 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 17.29 | 23.80 | -1.09 | 2.81 | 0.3713 | 623.0 | 538.0 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 15.58 | 23.59 | -1.29 | 3.65 | 0.3436 | 879.0 | 814.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 15.80 | 23.19 | -1.69 | 4.71 | 0.3477 | 844.0 | 677.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 17.04 | 22.75 | -2.13 | 5.57 | 0.3685 | 580.0 | 653.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.51 | 22.38 | -2.51 | 6.39 | 0.3768 | 614.0 | 487.5 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 17.21 | 20.77 | -4.11 | 10.56 | 0.3757 | 667.0 | 557.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
