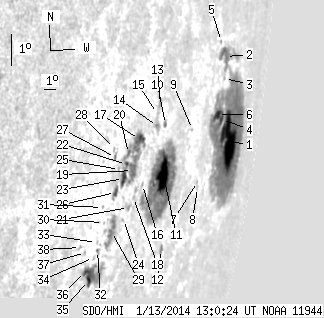

SDO HMI 2014-01-13 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.99 | 629.94 | 268.54 | 1372.61 | -9.60 | 101.37 | 77.03 | 261.12 | 0.9711 | 268.2 | 91.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.22 | 327.69 | 127.55 | 911.65 | -9.27 | 104.72 | 80.38 | 261.35 | 0.9851 | 175.8 | 67.1 | |
| 13.26 | -1.00 | 30.92 | -1.00 | -6.90 | 102.43 | 78.09 | 263.88 | 0.9779 | 554.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 2.61 | -7.54 | 102.68 | 78.34 | 263.21 | 0.9787 | 440.0 | 402.3 | |
| 1.79 | -1.00 | 4.33 | -1.00 | -8.74 | 103.07 | 78.73 | 261.97 | 0.9799 | 505.3 | 999999 | |
| 0.43 | 1.19 | 0.93 | 2.59 | -6.51 | 101.65 | 77.31 | 264.32 | 0.9751 | -99.6 | -36.0 | |
| 3.66 | -1.00 | 8.43 | -1.00 | -8.64 | 102.39 | 78.05 | 262.11 | 0.9775 | 733.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 1.60 | -10.74 | 101.20 | 76.86 | 260.00 | 0.9726 | 244.0 | 257.3 | |
| 0.00 | 0.94 | 0.00 | 1.97 | -10.91 | 101.34 | 77.00 | 259.82 | 0.9731 | 390.0 | 301.5 | |
| 0.00 | 0.68 | 0.00 | 1.28 | -9.30 | 99.53 | 75.19 | 261.55 | 0.9658 | 449.0 | 364.9 | |
| 1.19 | 2.38 | 1.89 | 3.77 | -9.36 | 96.63 | 72.29 | 261.58 | 0.9516 | 448.9 | 367.2 | |
| 23.38 | 151.65 | 38.28 | 247.24 | -10.84 | 97.28 | 72.94 | 260.00 | 0.9548 | 479.0 | 113.3 | |
| 1.70 | 2.89 | 2.99 | 5.09 | -12.98 | 98.60 | 74.26 | 257.75 | 0.9611 | -407.5 | -347.4 | |
| 0.00 | 3.49 | 0.00 | 5.32 | -8.81 | 95.88 | 71.54 | 262.17 | 0.9476 | 169.0 | 162.1 | |
| 1.28 | 4.68 | 1.95 | 7.17 | -9.47 | 95.91 | 71.57 | 261.48 | 0.9476 | 526.7 | 520.9 | |
| 0.00 | 1.45 | 0.00 | 2.20 | -9.09 | 95.72 | 71.38 | 261.88 | 0.9467 | 351.0 | 348.4 | |
| 0.00 | 1.19 | 0.00 | 1.78 | -11.24 | 95.44 | 71.10 | 259.61 | 0.9449 | 306.0 | 254.4 | |
| 6.29 | 61.20 | 9.00 | 86.11 | -9.96 | 94.48 | 70.14 | 260.99 | 0.9395 | 393.6 | 145.0 | |
| 0.00 | 1.19 | 0.00 | 1.73 | -11.67 | 94.86 | 70.52 | 259.16 | 0.9415 | 353.0 | 268.0 | |
| 6.38 | -17.00 | 9.05 | -17.00 | -10.90 | 94.34 | 70.00 | 259.99 | 0.9385 | 475.0 | 999999 | |
| 1.45 | -17.00 | 2.00 | -17.00 | -10.43 | 93.75 | 69.41 | 260.50 | 0.9350 | -498.2 | 999999 | |
| 0.00 | 2.47 | 0.00 | 3.53 | -11.99 | 94.59 | 70.25 | 258.82 | 0.9400 | -52.0 | 48.0 | |
| 1.28 | -17.00 | 1.76 | -17.00 | -10.76 | 93.74 | 69.40 | 260.14 | 0.9349 | -340.0 | 999999 | |
| 5.27 | -17.00 | 7.26 | -17.00 | -11.18 | 93.70 | 69.36 | 259.69 | 0.9347 | -326.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 1.20 | -12.37 | 94.37 | 70.03 | 258.42 | 0.9387 | -239.0 | -217.0 | |
| 0.00 | 1.28 | 0.00 | 1.72 | -10.95 | 93.23 | 68.89 | 259.95 | 0.9318 | -461.0 | -414.9 | |
| 2.72 | 5.95 | 3.68 | 8.03 | -11.64 | 93.25 | 68.91 | 259.21 | 0.9319 | -368.2 | -265.3 | |
| 0.00 | 2.64 | 0.00 | 3.48 | -10.62 | 92.74 | 68.40 | 260.31 | 0.9287 | -309.0 | -334.1 | |
| 0.00 | 1.02 | 0.00 | 1.34 | -10.37 | 92.54 | 68.20 | 260.58 | 0.9274 | -395.0 | -348.1 | |
| 9.86 | 17.34 | 13.50 | 23.72 | -12.79 | 93.57 | 69.23 | 257.97 | 0.9339 | 402.5 | 352.3 | |
| 0.00 | 0.68 | 0.00 | 0.90 | -12.57 | 92.76 | 68.42 | 258.20 | 0.9289 | -152.0 | -180.0 | |
| 0.00 | 1.11 | 0.00 | 1.44 | -12.14 | 92.44 | 68.10 | 258.66 | 0.9268 | -336.0 | -252.1 | |
| 0.68 | 2.04 | 0.90 | 2.70 | -13.42 | 92.76 | 68.42 | 257.29 | 0.9289 | -230.5 | -158.2 | |
| 0.00 | 0.43 | 0.00 | 0.56 | -13.19 | 92.54 | 68.20 | 257.53 | 0.9275 | -108.0 | -140.6 | |
| 0.00 | 0.51 | 0.00 | 0.67 | -13.65 | 92.56 | 68.22 | 257.04 | 0.9277 | -323.0 | -279.0 | |
| 2.30 | 29.07 | 3.02 | 38.65 | -14.34 | 92.59 | 68.25 | 256.29 | 0.9279 | 729.5 | 394.6 | |
| 0.85 | -35.00 | 1.10 | -35.00 | -14.10 | 92.18 | 67.84 | 256.55 | 0.9253 | 617.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.97 | -13.54 | 91.85 | 67.51 | 257.14 | 0.9231 | -322.0 | -213.1 | |
| 0.00 | 1.28 | 0.00 | 1.59 | -13.43 | 91.38 | 67.04 | 257.26 | 0.9200 | -356.0 | -323.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
