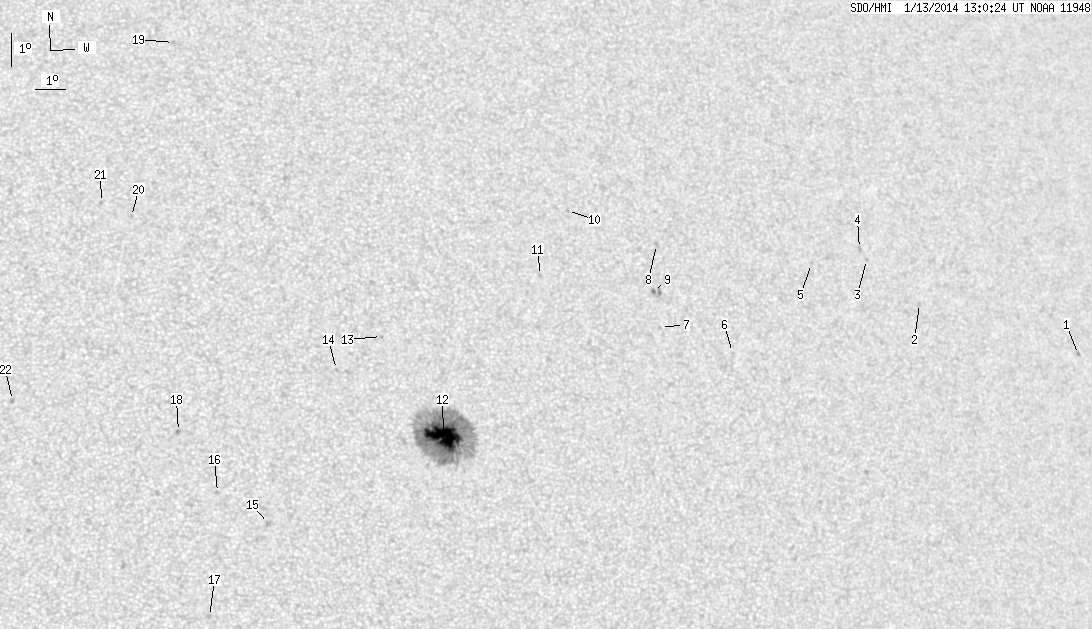

SDO HMI 2014-01-13 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.06 | 291.87 | 22.15 | 158.35 | 6.00 | 45.69 | 21.35 | 295.98 | 0.4039 | -752.3 | -387.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.15 | 8.95 | 68.18 | 43.84 | 287.03 | 0.7179 | -569.0 | -506.7 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 10.19 | 62.06 | 37.72 | 291.39 | 0.6490 | -624.0 | -535.3 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 11.45 | 60.25 | 35.91 | 294.22 | 0.6326 | -588.0 | -525.7 | |
| 0.00 | 1.79 | 0.00 | 1.14 | 11.77 | 60.04 | 35.70 | 294.82 | 0.6317 | -698.0 | -601.7 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 11.23 | 58.20 | 33.86 | 295.14 | 0.6060 | -575.0 | -486.2 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 8.40 | 55.08 | 30.74 | 292.62 | 0.5500 | -671.0 | -523.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 9.07 | 52.67 | 28.33 | 295.51 | 0.5213 | -696.0 | -598.1 | |
| 0.00 | 2.21 | 0.00 | 1.30 | 11.60 | 52.79 | 28.45 | 299.72 | 0.5394 | -692.0 | -589.5 | |
| 0.51 | 6.12 | 0.30 | 3.56 | 10.16 | 52.53 | 28.19 | 297.51 | 0.5264 | -960.0 | -712.4 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 12.54 | 49.87 | 25.53 | 304.00 | 0.5096 | -757.0 | -542.7 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 10.52 | 48.78 | 24.44 | 301.61 | 0.4797 | -761.0 | -556.0 | |
| 40.55 | 254.42 | 21.85 | 137.17 | 5.56 | 45.34 | 21.00 | 295.16 | 0.3958 | -1360.7 | -440.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 8.52 | 43.52 | 19.18 | 303.99 | 0.3935 | -801.0 | -685.9 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 7.49 | 42.05 | 17.71 | 303.82 | 0.3647 | -787.0 | -494.9 | |
| 0.00 | 3.57 | 0.00 | 1.85 | 2.84 | 39.82 | 15.48 | 294.75 | 0.2949 | 881.0 | 744.4 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 3.73 | 38.28 | 13.94 | 300.02 | 0.2788 | 823.0 | 642.9 | |
| 0.00 | 2.21 | 0.00 | 1.13 | 0.05 | 38.00 | 13.66 | 287.64 | 0.2489 | 767.0 | 648.3 | |
| 0.00 | 2.13 | 0.00 | 1.10 | 5.53 | 37.13 | 12.79 | 307.70 | 0.2797 | 813.0 | 707.4 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 17.48 | 37.56 | 13.22 | 329.52 | 0.4317 | 789.0 | 645.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 12.02 | 35.92 | 11.58 | 325.06 | 0.3442 | 830.0 | 686.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 12.44 | 35.01 | 10.67 | 327.88 | 0.3417 | 818.0 | 603.0 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 6.40 | 32.14 | 7.80 | 324.09 | 0.2311 | 1015.0 | 725.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
