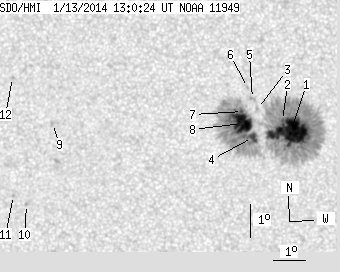

SDO HMI 2014-01-13 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.27 | 459.38 | 46.06 | 237.18 | -16.49 | 13.18 | -11.16 | 138.78 | 0.2828 | 1141.7 | 404.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.00 | 288.93 | 28.34 | 148.81 | -16.58 | 13.81 | -10.53 | 140.49 | 0.2767 | 1393.3 | 478.2 | |
| 1.62 | -1.00 | 0.83 | -1.00 | -16.24 | 13.57 | -10.77 | 139.07 | 0.2750 | 1073.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.87 | 12.81 | -11.53 | 136.23 | 0.2791 | 842.0 | 653.7 | |
| 5.87 | 160.23 | 3.04 | 83.00 | -16.74 | 12.60 | -11.74 | 137.90 | 0.2918 | 1149.5 | 312.8 | |
| 0.00 | 1.79 | 0.00 | 0.92 | -15.57 | 12.68 | -11.66 | 135.11 | 0.2772 | 891.0 | 690.4 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -15.23 | 12.54 | -11.80 | 133.89 | 0.2751 | 522.0 | 356.1 | |
| 1.62 | -4.00 | 0.83 | -4.00 | -15.95 | 12.34 | -12.00 | 135.32 | 0.2856 | 1166.6 | 999999 | |
| 25.16 | -4.00 | 13.02 | -4.00 | -16.31 | 12.29 | -12.05 | 136.11 | 0.2904 | 1276.3 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -16.19 | 6.28 | -18.06 | 124.97 | 0.3649 | -724.0 | -599.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.62 | 5.17 | -19.17 | 128.77 | 0.4008 | -872.0 | -761.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -18.33 | 4.78 | -19.56 | 127.66 | 0.4032 | -784.0 | -688.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -14.78 | 5.12 | -19.22 | 120.11 | 0.3695 | -755.0 | -597.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
