SDO HMI 2014-01-13 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.05 | 274.90 | 24.37 | 149.52 | 5.94 | 45.61 | 21.82 | 295.28 | 0.4102 | -729.1 | -378.2 | |
|
previous
or next observation for the same group /

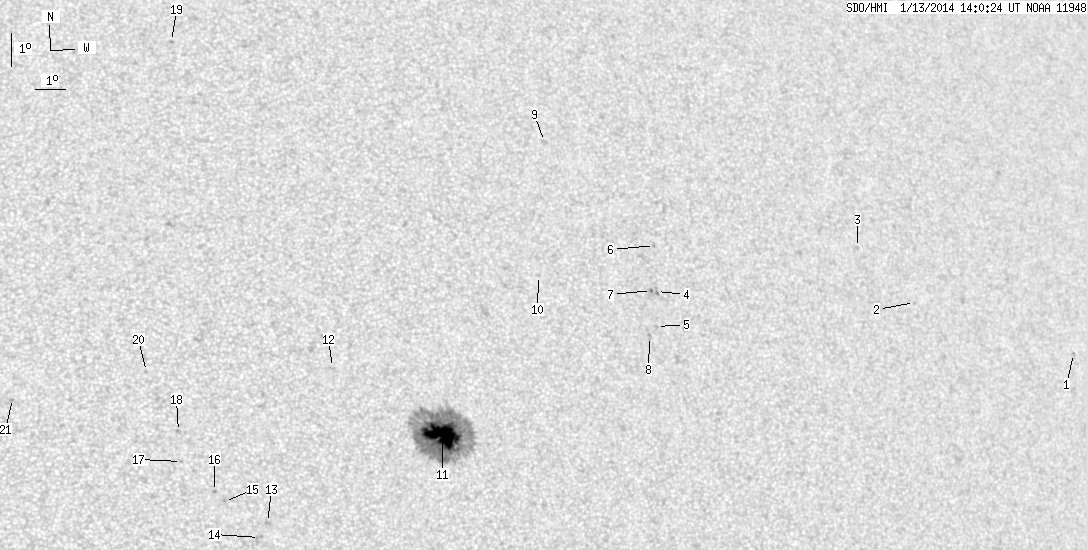

back to the solar disc SDO HMI 2014-01-13 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 1.04 | 8.98 | 68.22 | 44.43 | 286.86 | 0.7248 | -628.0 | -477.6 | |
| 0.00 | 0.93 | 0.00 | 0.61 | 10.21 | 62.05 | 38.26 | 291.16 | 0.6558 | -642.0 | -526.3 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 11.80 | 60.13 | 36.34 | 294.49 | 0.6397 | -684.0 | -535.7 | |
| 0.00 | 2.89 | 0.00 | 1.69 | 10.15 | 52.73 | 28.94 | 296.90 | 0.5362 | -717.0 | -620.2 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 9.09 | 52.63 | 28.84 | 295.15 | 0.5283 | -716.0 | -622.1 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 11.56 | 52.81 | 29.02 | 299.17 | 0.5465 | -737.0 | -563.0 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 10.18 | 52.56 | 28.77 | 297.07 | 0.5342 | -879.0 | -843.5 | |
| 0.00 | 2.38 | 0.00 | 1.38 | 8.77 | 52.36 | 28.57 | 294.81 | 0.5228 | -709.0 | -661.6 | |
| 0.00 | 2.97 | 0.00 | 1.73 | 14.65 | 49.44 | 25.65 | 307.29 | 0.5285 | -677.0 | -373.9 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 10.50 | 48.79 | 25.00 | 301.02 | 0.4869 | -741.0 | -538.4 | |
| 45.05 | 243.85 | 24.37 | 131.97 | 5.57 | 45.36 | 21.57 | 294.60 | 0.4043 | -1326.3 | -425.9 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 7.53 | 41.97 | 18.18 | 303.22 | 0.3715 | -569.0 | -657.7 | |
| 0.00 | 2.21 | 0.00 | 1.15 | 2.85 | 39.82 | 16.03 | 294.02 | 0.3033 | 1019.0 | 751.2 | |
| 0.00 | 2.12 | 0.00 | 1.10 | 2.40 | 39.57 | 15.78 | 292.98 | 0.2964 | 872.0 | 702.0 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 3.45 | 38.51 | 14.72 | 297.80 | 0.2881 | 742.0 | 545.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 3.74 | 38.21 | 14.42 | 299.19 | 0.2860 | 895.0 | 787.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 4.62 | 37.23 | 13.44 | 303.68 | 0.2796 | 809.0 | 568.4 | |
| 0.00 | 2.12 | 0.00 | 1.10 | 5.51 | 37.16 | 13.37 | 306.42 | 0.2873 | 819.0 | 694.4 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 17.49 | 37.55 | 13.76 | 328.53 | 0.4363 | 898.0 | 690.3 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 7.30 | 36.23 | 12.44 | 313.20 | 0.2945 | 793.0 | 658.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 6.43 | 32.16 | 8.37 | 322.24 | 0.2374 | 822.0 | 750.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
