SDO HMI 2014-01-13 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.48 | 173.78 | 21.80 | 89.19 | -17.91 | 30.32 | 6.53 | 204.57 | 0.2603 | 473.8 | 63.2 | |
|
previous
or next observation for the same group /

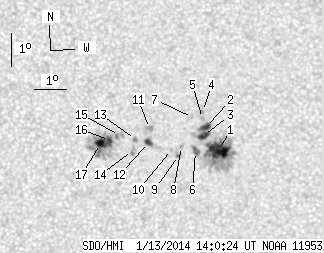

back to the solar disc SDO HMI 2014-01-13 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.48 | 98.59 | 10.54 | 50.71 | -18.11 | 31.61 | 7.82 | 208.51 | 0.2721 | 1282.0 | 483.0 | |
| 3.91 | -1.00 | 2.00 | -1.00 | -17.42 | 31.17 | 7.38 | 208.46 | 0.2584 | 1222.7 | 999999 | |
| 5.18 | -1.00 | 2.66 | -1.00 | -17.66 | 31.12 | 7.33 | 207.83 | 0.2616 | 1180.7 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -16.94 | 31.06 | 7.27 | 209.05 | 0.2505 | 983.0 | 835.8 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -17.15 | 31.07 | 7.28 | 208.66 | 0.2536 | 905.0 | 714.1 | |
| 2.38 | 5.95 | 1.22 | 3.06 | -18.15 | 30.89 | 7.10 | 206.22 | 0.2671 | 894.9 | 736.8 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -17.12 | 30.76 | 6.97 | 207.68 | 0.2507 | 782.0 | 725.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -18.00 | 30.45 | 6.66 | 205.05 | 0.2616 | 923.0 | 633.0 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -18.28 | 30.36 | 6.57 | 204.32 | 0.2652 | 889.0 | 738.5 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -18.10 | 30.14 | 6.35 | 203.87 | 0.2609 | 618.0 | 448.7 | |
| 0.00 | 4.50 | 0.00 | 2.30 | -17.46 | 29.43 | 5.64 | 202.48 | 0.2464 | -1010.0 | -790.8 | |
| 2.72 | 4.76 | 1.39 | 2.44 | -17.89 | 29.41 | 5.62 | 201.75 | 0.2529 | -990.2 | -811.8 | |
| 0.00 | 2.12 | 0.00 | 1.09 | -17.80 | 29.01 | 5.22 | 200.44 | 0.2490 | -1080.0 | -889.9 | |
| 0.00 | 3.40 | 0.00 | 1.74 | -18.13 | 28.92 | 5.13 | 199.67 | 0.2539 | -965.0 | -828.7 | |
| 0.00 | 3.91 | 0.00 | 2.00 | -17.68 | 28.51 | 4.72 | 198.80 | 0.2443 | -702.0 | -884.2 | |
| 2.29 | 42.07 | 1.17 | 21.49 | -17.83 | 28.20 | 4.41 | 197.46 | 0.2452 | -1167.3 | -594.7 | |
| 5.52 | -16.00 | 2.82 | -16.00 | -17.93 | 27.92 | 4.13 | 196.31 | 0.2453 | -1320.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
