SDO HMI 2014-01-13 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 18.50 | 0.27 | 9.83 | 16.25 | 26.20 | 2.96 | 351.94 | 0.3589 | 116.5 | 68.3 | |
|
previous
or next observation for the same group /

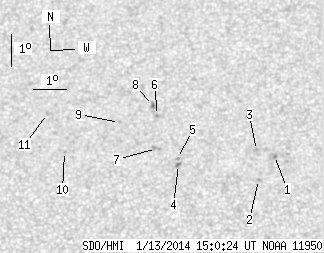

back to the solar disc SDO HMI 2014-01-13 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 0.99 | 15.84 | 29.37 | 6.13 | 343.43 | 0.3619 | -893.0 | -816.9 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 15.09 | 28.86 | 5.62 | 344.15 | 0.3477 | -865.0 | -663.8 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 16.00 | 28.82 | 5.58 | 344.96 | 0.3619 | -661.0 | -593.6 | |
| 0.00 | 2.38 | 0.00 | 1.26 | 15.54 | 26.42 | 3.18 | 351.10 | 0.3465 | -1033.0 | -816.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 15.73 | 26.39 | 3.15 | 351.26 | 0.3495 | -713.0 | -523.0 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 17.09 | 25.79 | 2.55 | 353.36 | 0.3701 | 964.0 | 694.4 | |
| 0.00 | 3.31 | 0.00 | 1.75 | 16.05 | 25.75 | 2.51 | 353.13 | 0.3531 | 706.0 | 691.7 | |
| 0.51 | 2.55 | 0.27 | 1.36 | 17.40 | 25.64 | 2.40 | 353.84 | 0.3750 | 994.0 | 779.8 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 16.86 | 24.62 | 1.38 | 356.36 | 0.3648 | 707.0 | 591.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 15.95 | 22.93 | -0.31 | 0.87 | 0.3491 | 1028.0 | 778.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 17.15 | 22.40 | -0.84 | 2.18 | 0.3690 | 811.0 | 692.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
