SDO HMI 2014-01-13 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.21 | 543.06 | 259.44 | 1350.15 | -9.80 | 101.49 | 78.80 | 260.85 | 0.9774 | 224.1 | 89.0 | |
|
previous
or next observation for the same group /

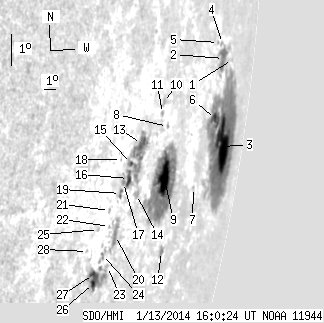

back to the solar disc SDO HMI 2014-01-13 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 2.73 | -6.79 | 104.29 | 81.60 | 263.80 | 0.9888 | 231.0 | 202.9 | |
| 10.37 | 19.97 | 28.06 | 54.33 | -6.88 | 102.64 | 79.95 | 263.80 | 0.9841 | 598.6 | 469.8 | |
| 37.39 | 254.85 | 125.53 | 847.69 | -9.36 | 104.71 | 82.02 | 261.18 | 0.9895 | 57.0 | 51.2 | |
| 0.00 | 1.78 | 0.00 | 4.65 | -6.46 | 102.19 | 79.51 | 264.25 | 0.9828 | 411.0 | 264.0 | |
| 0.34 | 0.76 | 0.84 | 1.88 | -6.48 | 101.55 | 78.87 | 264.27 | 0.9807 | -140.0 | -73.0 | |
| 9.43 | -3.00 | 25.60 | -3.00 | -8.70 | 102.66 | 79.97 | 261.95 | 0.9839 | 604.5 | 999999 | |
| 0.00 | 0.93 | 0.00 | 2.18 | -10.86 | 101.04 | 78.35 | 259.82 | 0.9782 | 184.0 | 193.9 | |
| 0.51 | 1.36 | 0.89 | 2.37 | -9.35 | 96.62 | 73.93 | 261.53 | 0.9599 | 389.7 | 349.7 | |
| 19.88 | 135.28 | 35.78 | 242.62 | -10.87 | 97.25 | 74.56 | 259.94 | 0.9626 | 412.5 | 101.0 | |
| 0.00 | 3.91 | 0.00 | 6.52 | -8.69 | 95.83 | 73.14 | 262.25 | 0.9561 | 84.0 | 65.8 | |
| 0.00 | 2.29 | 0.00 | 3.84 | -9.02 | 95.89 | 73.21 | 261.91 | 0.9564 | 455.0 | 409.0 | |
| 1.95 | 4.50 | 3.81 | 8.76 | -12.97 | 98.59 | 75.90 | 257.72 | 0.9684 | -492.3 | -331.4 | |
| 6.63 | 57.70 | 10.20 | 87.60 | -10.03 | 94.32 | 71.63 | 260.89 | 0.9479 | 506.7 | 130.3 | |
| 0.00 | 4.08 | 0.00 | 6.37 | -11.53 | 94.71 | 72.02 | 259.29 | 0.9499 | 148.0 | 166.7 | |
| 1.19 | -13.00 | 1.77 | -13.00 | -10.67 | 93.72 | 71.03 | 260.22 | 0.9445 | -360.5 | 999999 | |
| 5.44 | -13.00 | 8.10 | -13.00 | -11.12 | 93.69 | 71.00 | 259.74 | 0.9443 | -202.0 | 999999 | |
| 0.76 | -13.00 | 1.12 | -13.00 | -11.27 | 93.31 | 70.62 | 259.59 | 0.9422 | -568.4 | 999999 | |
| 0.00 | 0.76 | 0.00 | 1.09 | -10.62 | 92.78 | 70.09 | 260.29 | 0.9391 | -305.0 | -283.8 | |
| 1.87 | 3.31 | 2.72 | 4.82 | -11.61 | 93.23 | 70.54 | 259.23 | 0.9417 | -377.0 | -279.8 | |
| 5.10 | 13.09 | 7.51 | 19.24 | -12.85 | 93.54 | 70.86 | 257.91 | 0.9434 | 418.5 | 351.3 | |
| 0.00 | 1.36 | 0.00 | 1.92 | -12.17 | 92.57 | 69.88 | 258.64 | 0.9378 | -289.0 | -188.9 | |
| 0.00 | 0.59 | 0.00 | 0.85 | -12.63 | 92.85 | 70.16 | 258.15 | 0.9394 | -181.0 | -144.1 | |
| 0.00 | 1.53 | 0.00 | 2.24 | -13.80 | 93.44 | 70.75 | 256.90 | 0.9429 | 357.0 | 319.2 | |
| 0.51 | 3.65 | 0.72 | 5.20 | -13.48 | 92.77 | 70.08 | 257.24 | 0.9390 | -235.7 | -120.5 | |
| 0.00 | 0.85 | 0.00 | 1.17 | -12.78 | 91.97 | 69.28 | 257.98 | 0.9342 | -413.0 | -333.2 | |
| 2.46 | 28.81 | 3.47 | 40.94 | -14.38 | 92.57 | 69.88 | 256.28 | 0.9378 | 665.0 | 385.2 | |
| 2.38 | -26.00 | 3.32 | -26.00 | -14.12 | 92.39 | 69.70 | 256.56 | 0.9368 | 417.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 1.14 | -13.48 | 91.46 | 68.77 | 257.22 | 0.9311 | -300.0 | -244.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
