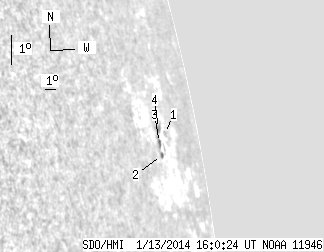

SDO HMI 2014-01-13 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 10.19 | 2.04 | 24.85 | 9.51 | 99.98 | 77.30 | 280.66 | 0.9800 | 197.2 | 220.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 2.88 | 9.73 | 100.79 | 78.10 | 280.80 | 0.9827 | -353.0 | -261.1 | |
| 0.85 | 1.87 | 2.04 | 4.49 | 8.99 | 99.79 | 77.10 | 280.16 | 0.9791 | 372.0 | 354.7 | |
| 0.00 | 3.65 | 0.00 | 8.73 | 9.38 | 99.80 | 77.12 | 280.56 | 0.9793 | 455.0 | 399.2 | |
| 0.00 | 3.57 | 0.00 | 8.75 | 9.82 | 100.00 | 77.31 | 280.98 | 0.9802 | 133.0 | 163.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
