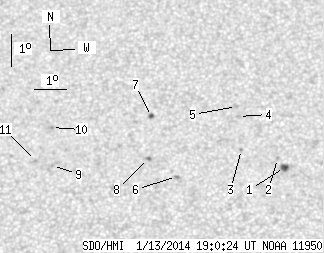

SDO HMI 2014-01-13 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.22 | 17.83 | 1.73 | 9.51 | 16.44 | 26.94 | 5.91 | 344.63 | 0.3729 | -130.5 | -118.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.29 | 4.16 | 1.23 | 2.22 | 15.82 | 29.69 | 8.66 | 337.21 | 0.3756 | -1064.5 | -857.8 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 16.10 | 29.49 | 8.46 | 337.98 | 0.3785 | -768.0 | -595.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 16.37 | 28.38 | 7.35 | 340.88 | 0.3764 | -769.0 | -539.2 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 17.41 | 28.33 | 7.30 | 341.90 | 0.3920 | -812.0 | -641.1 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 17.73 | 28.28 | 7.25 | 342.28 | 0.3966 | -843.0 | -683.8 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 15.50 | 26.35 | 5.32 | 345.29 | 0.3533 | -938.0 | -758.8 | |
| 0.93 | 1.78 | 0.50 | 0.95 | 17.39 | 25.63 | 4.60 | 348.35 | 0.3805 | 939.5 | 735.2 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 16.06 | 25.50 | 4.47 | 347.90 | 0.3590 | 935.0 | 798.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 15.84 | 22.55 | 1.52 | 355.78 | 0.3484 | 839.0 | 577.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 17.04 | 22.53 | 1.50 | 356.08 | 0.3680 | 888.0 | 700.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 15.99 | 22.03 | 1.00 | 357.24 | 0.3505 | 907.0 | 745.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
