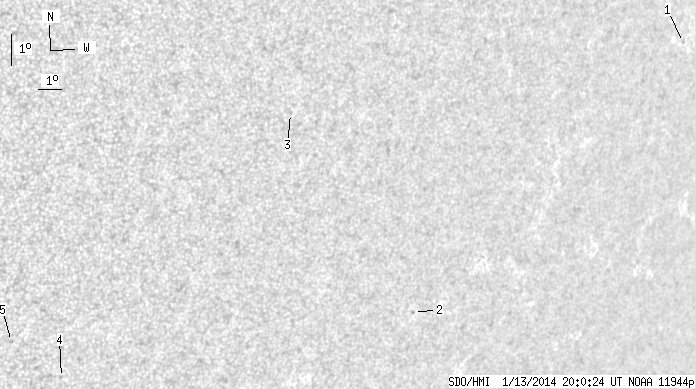

SDO HMI 2014-01-13 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.17 | 0.00 | 3.83 | -20.40 | 65.72 | 45.24 | 244.69 | 0.7301 | -264.4 | -188.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.92 | -14.09 | 80.27 | 59.79 | 256.24 | 0.8650 | -365.0 | -309.2 | |
| 0.00 | 1.10 | 0.00 | 0.87 | -23.04 | 69.85 | 49.38 | 243.77 | 0.7809 | 576.0 | 506.6 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -17.28 | 62.16 | 41.68 | 249.19 | 0.6816 | -432.0 | -408.5 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -25.79 | 55.50 | 35.02 | 233.88 | 0.6420 | -490.0 | -398.5 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -24.74 | 53.20 | 32.72 | 233.87 | 0.6102 | -611.0 | -491.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
