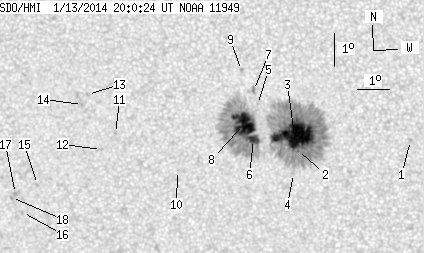

SDO HMI 2014-01-13 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.58 | 471.76 | 48.81 | 241.05 | -16.53 | 13.02 | -7.46 | 149.60 | 0.2464 | 988.0 | 390.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | -16.79 | 17.28 | -3.19 | 166.04 | 0.2221 | 930.0 | 693.8 | |
| 0.59 | 293.20 | 0.30 | 149.54 | -17.07 | 13.78 | -6.70 | 153.09 | 0.2474 | 817.0 | 476.3 | |
| 54.46 | -2.00 | 27.78 | -2.00 | -16.61 | 13.71 | -6.77 | 151.93 | 0.2412 | 1455.6 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -17.76 | 13.63 | -6.85 | 153.87 | 0.2590 | -3.0 | -3.4 | |
| 0.00 | 0.59 | 0.00 | 0.30 | -15.67 | 12.60 | -7.88 | 146.03 | 0.2373 | 827.0 | 644.3 | |
| 7.48 | 160.92 | 3.83 | 82.36 | -16.72 | 12.43 | -8.05 | 147.92 | 0.2536 | 1102.0 | 319.4 | |
| 0.00 | 2.46 | 0.00 | 1.25 | -15.25 | 12.49 | -7.99 | 144.62 | 0.2326 | 981.0 | 769.0 | |
| 33.05 | -6.00 | 16.90 | -6.00 | -16.26 | 12.14 | -8.34 | 145.98 | 0.2499 | 1324.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -14.64 | 12.15 | -8.33 | 141.84 | 0.2280 | -868.0 | -697.8 | |
| 0.00 | 0.59 | 0.00 | 0.31 | -17.62 | 10.01 | -10.47 | 143.00 | 0.2891 | -660.0 | -425.3 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -16.48 | 8.13 | -12.35 | 135.79 | 0.2954 | -852.0 | -652.1 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -16.95 | 7.66 | -12.82 | 135.89 | 0.3064 | -880.0 | -715.5 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -15.29 | 7.33 | -13.15 | 130.99 | 0.2920 | -848.0 | -696.4 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -15.59 | 7.15 | -13.33 | 131.42 | 0.2974 | -779.0 | -720.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -17.97 | 5.54 | -14.94 | 134.02 | 0.3425 | -550.0 | -466.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.81 | 4.98 | -15.50 | 134.82 | 0.3582 | -719.0 | -566.2 | |
| 0.00 | 2.04 | 0.00 | 1.08 | -18.23 | 4.81 | -15.67 | 133.28 | 0.3540 | -871.0 | -703.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.35 | 4.67 | -15.81 | 133.29 | 0.3569 | -771.0 | -737.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
