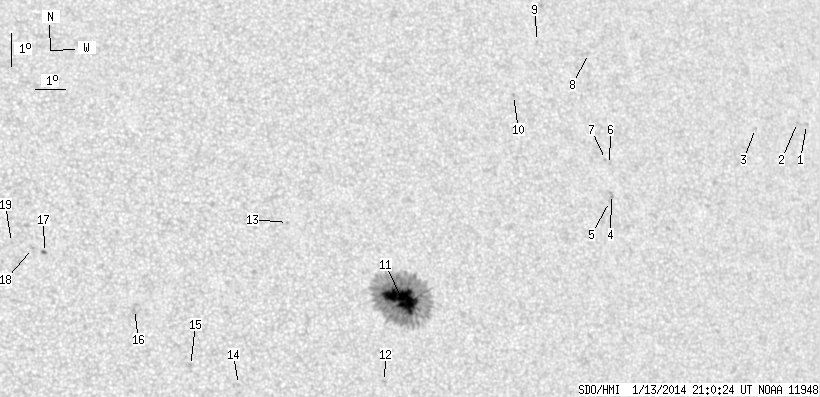

SDO HMI 2014-01-13 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.07 | 269.97 | 24.00 | 150.91 | 5.85 | 45.41 | 25.48 | 291.84 | 0.4624 | -804.0 | -371.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.75 | 11.55 | 60.45 | 40.52 | 291.98 | 0.6888 | -555.0 | -505.8 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 11.59 | 60.10 | 40.17 | 292.21 | 0.6849 | -686.0 | -565.7 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 11.33 | 58.42 | 38.49 | 292.67 | 0.6637 | -519.0 | -480.0 | |
| 0.00 | 2.63 | 0.00 | 1.60 | 9.06 | 52.79 | 32.87 | 292.41 | 0.5819 | -533.0 | -548.5 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 8.85 | 52.70 | 32.77 | 292.11 | 0.5796 | -579.0 | -483.1 | |
| 0.00 | 0.59 | 0.00 | 0.36 | 9.98 | 52.82 | 32.90 | 293.84 | 0.5871 | -533.0 | -451.0 | |
| 0.00 | 0.93 | 0.00 | 0.57 | 10.12 | 52.70 | 32.77 | 294.16 | 0.5862 | -766.0 | -612.5 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 13.36 | 52.53 | 32.60 | 299.25 | 0.6031 | -458.0 | -304.4 | |
| 0.00 | 0.76 | 0.00 | 0.47 | 13.66 | 50.75 | 30.83 | 301.05 | 0.5834 | -649.0 | -504.7 | |
| 0.00 | 1.10 | 0.00 | 0.66 | 11.96 | 49.68 | 29.75 | 299.25 | 0.5587 | -710.0 | -573.2 | |
| 42.65 | 243.93 | 23.78 | 136.04 | 5.63 | 45.41 | 25.48 | 291.31 | 0.4615 | -1275.9 | -414.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 3.16 | 44.72 | 24.80 | 286.59 | 0.4389 | 763.0 | 561.9 | |
| 0.00 | 0.93 | 0.00 | 0.51 | 7.83 | 41.79 | 21.87 | 299.25 | 0.4247 | -893.0 | -744.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 2.94 | 40.05 | 20.13 | 289.74 | 0.3667 | 676.0 | 577.2 | |
| 0.00 | 2.55 | 0.00 | 1.35 | 3.47 | 38.56 | 18.63 | 292.66 | 0.3472 | 728.0 | 601.5 | |
| 0.00 | 5.61 | 0.00 | 2.94 | 5.10 | 36.86 | 16.94 | 299.17 | 0.3338 | 903.0 | 609.2 | |
| 0.42 | 1.95 | 0.22 | 1.02 | 6.75 | 34.14 | 14.22 | 308.11 | 0.3114 | -848.8 | -653.8 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 6.87 | 33.78 | 13.85 | 309.13 | 0.3079 | 677.0 | 465.7 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 7.03 | 33.14 | 13.22 | 310.89 | 0.3015 | 742.0 | 581.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
