SDO HMI 2014-01-13 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.72 | 467.35 | 45.77 | 238.58 | -16.52 | 12.96 | -6.97 | 151.29 | 0.2422 | 938.6 | 399.4 | |
|
previous
or next observation for the same group /

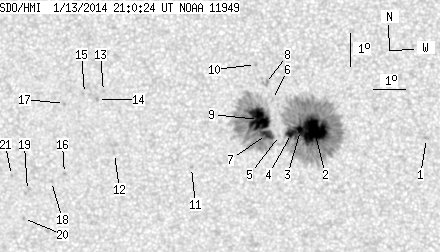

back to the solar disc SDO HMI 2014-01-13 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.04 | -16.86 | 17.32 | -2.61 | 168.57 | 0.2210 | 863.0 | 641.4 | |
| 38.32 | 285.73 | 19.52 | 145.58 | -16.60 | 13.87 | -6.06 | 154.43 | 0.2355 | 1526.8 | 491.1 | |
| 6.54 | -2.00 | 3.34 | -2.00 | -16.59 | 13.43 | -6.49 | 152.86 | 0.2387 | 1409.8 | 999999 | |
| 5.86 | -2.00 | 2.99 | -2.00 | -16.68 | 13.15 | -6.77 | 152.05 | 0.2422 | 1165.2 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -16.74 | 12.78 | -7.15 | 150.89 | 0.2461 | 726.0 | 577.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -15.65 | 12.60 | -7.32 | 147.87 | 0.2319 | 824.0 | 619.8 | |
| 7.73 | 157.69 | 3.95 | 80.59 | -16.70 | 12.37 | -7.55 | 149.48 | 0.2490 | 1095.7 | 339.4 | |
| 0.00 | 3.65 | 0.00 | 1.86 | -15.17 | 12.40 | -7.52 | 145.99 | 0.2269 | 823.0 | 823.2 | |
| 31.27 | -7.00 | 15.97 | -7.00 | -16.25 | 12.15 | -7.78 | 147.72 | 0.2445 | 1344.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -14.60 | 12.12 | -7.81 | 143.47 | 0.2219 | -787.0 | -691.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -17.67 | 9.99 | -9.94 | 144.48 | 0.2844 | -757.0 | -556.0 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -17.21 | 7.59 | -12.33 | 137.56 | 0.3038 | -675.0 | -560.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -15.34 | 7.37 | -12.56 | 132.37 | 0.2851 | -889.0 | -671.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.58 | 7.17 | -12.76 | 132.56 | 0.2902 | -937.0 | -828.8 | |
| 0.00 | 0.59 | 0.00 | 0.31 | -15.39 | 6.77 | -13.16 | 131.23 | 0.2931 | -444.0 | -518.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -17.79 | 5.96 | -13.96 | 135.45 | 0.3290 | -843.0 | -596.0 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -15.68 | 6.12 | -13.80 | 130.67 | 0.3043 | -699.0 | -580.9 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -18.02 | 5.53 | -14.40 | 135.13 | 0.3367 | -727.0 | -560.6 | |
| 0.00 | 3.14 | 0.00 | 1.66 | -18.28 | 4.73 | -15.19 | 134.22 | 0.3488 | -707.0 | -670.7 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -19.13 | 4.52 | -15.40 | 135.64 | 0.3605 | -839.0 | -608.4 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -17.81 | 4.26 | -15.66 | 132.36 | 0.3495 | -754.0 | -595.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
