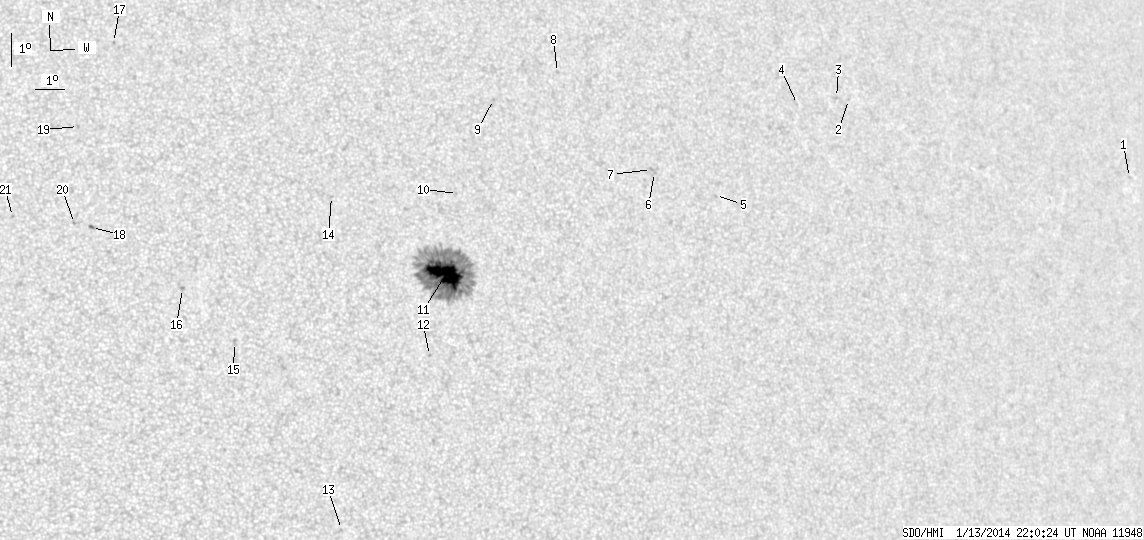

SDO HMI 2014-01-13 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.19 | 252.47 | 22.52 | 141.91 | 5.85 | 45.43 | 26.06 | 291.50 | 0.4706 | -700.6 | -392.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.88 | 9.90 | 72.65 | 53.27 | 285.36 | 0.8210 | -402.0 | -353.2 | |
| 0.00 | 0.76 | 0.00 | 0.53 | 11.58 | 60.50 | 41.13 | 291.75 | 0.6961 | -598.0 | -527.2 | |
| 0.00 | 1.02 | 0.00 | 0.70 | 11.62 | 60.03 | 40.66 | 292.02 | 0.6907 | -683.0 | -600.2 | |
| 0.00 | 0.42 | 0.00 | 0.28 | 11.32 | 58.45 | 39.07 | 292.38 | 0.6707 | -564.0 | -475.8 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 8.40 | 54.96 | 35.58 | 289.84 | 0.6142 | -639.0 | -522.6 | |
| 0.00 | 0.34 | 0.00 | 0.21 | 9.00 | 52.81 | 33.43 | 291.97 | 0.5890 | -670.0 | -678.5 | |
| 0.00 | 1.44 | 0.00 | 0.88 | 9.08 | 52.71 | 33.34 | 292.16 | 0.5882 | -665.0 | -599.5 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 11.92 | 49.72 | 30.34 | 298.73 | 0.5659 | -666.0 | -563.3 | |
| 0.00 | 0.59 | 0.00 | 0.35 | 11.00 | 47.40 | 28.03 | 299.14 | 0.5302 | -578.0 | -461.0 | |
| 0.00 | 0.42 | 0.00 | 0.24 | 8.10 | 45.93 | 26.56 | 295.25 | 0.4914 | -656.0 | -638.8 | |
| 40.19 | 231.20 | 22.52 | 129.53 | 5.65 | 45.38 | 26.01 | 290.95 | 0.4692 | -1250.4 | -436.0 | |
| 0.00 | 0.93 | 0.00 | 0.52 | 3.21 | 44.76 | 25.39 | 286.33 | 0.4480 | 763.0 | 658.8 | |
| 0.00 | 0.59 | 0.00 | 0.32 | -2.03 | 41.89 | 22.51 | 275.36 | 0.3860 | 720.0 | 581.3 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 7.88 | 41.79 | 22.42 | 298.75 | 0.4327 | -850.0 | -749.8 | |
| 0.00 | 2.89 | 0.00 | 1.53 | 3.42 | 38.54 | 19.17 | 291.97 | 0.3549 | 714.0 | 599.3 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 4.99 | 36.96 | 17.59 | 297.99 | 0.3424 | 878.0 | 748.5 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 12.40 | 35.16 | 15.79 | 317.17 | 0.3925 | 667.0 | 540.2 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 6.76 | 34.21 | 14.83 | 306.98 | 0.3197 | -865.0 | -672.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 9.81 | 33.93 | 14.55 | 314.51 | 0.3487 | 785.0 | 616.6 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 6.87 | 33.69 | 14.32 | 308.24 | 0.3140 | 828.0 | 663.8 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 7.05 | 31.80 | 12.43 | 312.70 | 0.2920 | 851.0 | 697.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
