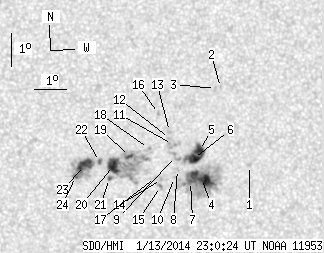

SDO HMI 2014-01-13 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.49 | 253.80 | 33.47 | 131.85 | -17.81 | 30.16 | 11.33 | 218.61 | 0.3007 | 304.3 | 63.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-13 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 0.94 | -17.71 | 33.12 | 14.29 | 225.40 | 0.3318 | 738.0 | 670.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -15.37 | 32.03 | 13.21 | 228.96 | 0.2934 | 674.0 | 485.3 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -15.40 | 31.87 | 13.05 | 228.55 | 0.2918 | 785.0 | 613.0 | |
| 17.42 | 89.39 | 9.10 | 46.72 | -18.13 | 31.62 | 12.79 | 221.42 | 0.3196 | 1195.4 | 412.2 | |
| 8.07 | 23.37 | 4.20 | 12.16 | -17.28 | 31.49 | 12.67 | 223.06 | 0.3082 | 1050.2 | 749.0 | |
| 9.43 | -5.00 | 4.91 | -5.00 | -17.52 | 31.32 | 12.50 | 222.11 | 0.3091 | 1146.5 | 999999 | |
| 1.02 | -4.00 | 0.53 | -4.00 | -18.22 | 31.27 | 12.45 | 220.46 | 0.3170 | 976.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -17.86 | 30.84 | 12.01 | 220.26 | 0.3079 | 960.0 | 719.5 | |
| 0.00 | 4.93 | 0.00 | 2.56 | -17.47 | 30.75 | 11.92 | 220.94 | 0.3022 | 738.0 | 759.1 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -18.11 | 30.76 | 11.94 | 219.55 | 0.3101 | 660.0 | 502.5 | |
| 0.00 | 5.95 | 0.00 | 3.08 | -17.11 | 30.63 | 11.81 | 221.50 | 0.2965 | 501.0 | 753.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -16.93 | 30.52 | 11.70 | 221.67 | 0.2931 | 913.0 | 732.6 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -16.72 | 30.51 | 11.69 | 222.15 | 0.2904 | 480.0 | 502.4 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -18.17 | 30.35 | 11.53 | 218.46 | 0.3067 | 941.0 | 801.3 | |
| 0.00 | 2.38 | 0.00 | 1.24 | -18.39 | 30.33 | 11.51 | 217.97 | 0.3092 | 932.0 | 721.6 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -16.18 | 30.14 | 11.31 | 222.57 | 0.2798 | 943.0 | 798.6 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -18.12 | 30.16 | 11.33 | 218.12 | 0.3039 | 934.0 | 710.7 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -17.24 | 29.88 | 11.06 | 219.39 | 0.2900 | 658.0 | 470.1 | |
| 2.04 | 76.90 | 1.05 | 39.78 | -17.49 | 29.30 | 10.48 | 217.36 | 0.2871 | -1118.5 | -466.0 | |
| 11.90 | -19.00 | 6.15 | -19.00 | -17.77 | 28.81 | 9.99 | 215.47 | 0.2860 | -1151.7 | 999999 | |
| 0.93 | -19.00 | 0.48 | -19.00 | -18.16 | 28.71 | 9.89 | 214.37 | 0.2903 | -749.4 | 999999 | |
| 1.02 | 2.38 | 0.53 | 1.23 | -17.65 | 28.37 | 9.54 | 214.52 | 0.2801 | -999.5 | -749.2 | |
| 11.47 | 32.97 | 5.91 | 16.99 | -17.78 | 27.90 | 9.08 | 212.96 | 0.2775 | -1209.3 | -586.6 | |
| 1.19 | -23.00 | 0.61 | -23.00 | -18.12 | 27.64 | 8.81 | 211.52 | 0.2798 | -820.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
