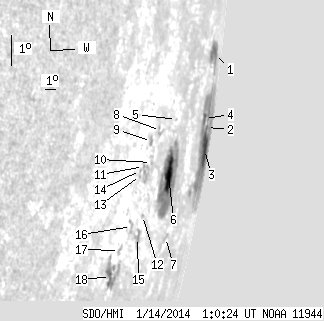

SDO HMI 2014-01-14 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.20 | 278.07 | 266.59 | 1223.71 | -9.82 | 101.61 | 83.88 | 260.58 | 0.9915 | 275.9 | 149.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.94 | 19.04 | 74.95 | 103.35 | -6.85 | 102.91 | 85.18 | 263.52 | 0.9961 | 414.2 | 264.6 | |
| 1.10 | 109.98 | 6.78 | 774.41 | -8.98 | 103.63 | 85.91 | 261.33 | 0.9970 | 436.6 | 176.6 | |
| 14.02 | -2.00 | 102.80 | -2.00 | -9.59 | 104.27 | 86.54 | 260.68 | 0.9977 | 101.0 | 999999 | |
| 3.40 | -2.00 | 16.56 | -2.00 | -8.80 | 102.48 | 84.76 | 261.59 | 0.9953 | 480.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 2.33 | -9.26 | 96.83 | 79.11 | 261.44 | 0.9810 | 350.0 | 376.1 | |
| 15.30 | 85.33 | 39.02 | 219.20 | -10.89 | 97.07 | 79.34 | 259.76 | 0.9816 | 446.0 | 72.4 | |
| 0.00 | 3.31 | 0.00 | 9.70 | -12.67 | 98.71 | 80.98 | 257.88 | 0.9863 | -222.0 | -224.8 | |
| 0.00 | 2.89 | 0.00 | 6.15 | -9.74 | 94.84 | 77.11 | 261.03 | 0.9737 | 538.0 | 387.5 | |
| 1.61 | 3.40 | 3.22 | 6.78 | -10.13 | 93.94 | 76.22 | 260.66 | 0.9700 | -187.4 | -93.4 | |
| 0.00 | 1.19 | 0.00 | 2.46 | -10.73 | 94.40 | 76.68 | 260.03 | 0.9718 | 391.0 | 326.2 | |
| 0.34 | 9.69 | 0.66 | 19.34 | -10.92 | 93.52 | 75.79 | 259.87 | 0.9681 | -405.0 | 37.6 | |
| 0.00 | 1.27 | 0.00 | 2.66 | -12.32 | 94.58 | 76.86 | 258.39 | 0.9724 | 59.0 | 81.0 | |
| 0.00 | 0.76 | 0.00 | 1.47 | -11.20 | 93.36 | 75.64 | 259.58 | 0.9674 | -407.0 | -359.9 | |
| 0.00 | 0.93 | 0.00 | 1.78 | -11.06 | 93.25 | 75.53 | 259.73 | 0.9670 | -304.0 | -270.0 | |
| 0.00 | 7.14 | 0.00 | 14.83 | -12.98 | 94.56 | 76.83 | 257.71 | 0.9722 | 112.0 | 88.2 | |
| 0.00 | 4.42 | 0.00 | 8.55 | -12.73 | 93.53 | 75.80 | 258.00 | 0.9679 | 326.0 | 262.0 | |
| 0.00 | 2.97 | 0.00 | 5.50 | -13.51 | 92.77 | 75.04 | 257.20 | 0.9645 | -208.0 | -140.0 | |
| 12.49 | 24.82 | 22.60 | 45.20 | -14.32 | 92.45 | 74.73 | 256.36 | 0.9631 | 301.0 | 150.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
