SDO HMI 2014-01-14 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.92 | 225.21 | 35.93 | 117.46 | -17.82 | 30.22 | 12.50 | 221.31 | 0.3129 | 173.8 | 126.3 | |
|
previous
or next observation for the same group /

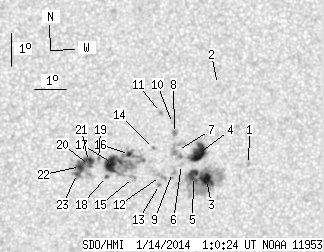

back to the solar disc SDO HMI 2014-01-14 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.90 | -17.70 | 33.11 | 15.38 | 227.44 | 0.3446 | 852.0 | 675.7 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -15.31 | 31.94 | 14.21 | 231.13 | 0.3055 | 631.0 | 654.5 | |
| 11.90 | 75.81 | 6.25 | 39.81 | -18.18 | 31.80 | 14.08 | 223.95 | 0.3344 | 1105.4 | 403.1 | |
| 16.32 | 21.33 | 8.53 | 11.15 | -17.40 | 31.48 | 13.76 | 225.08 | 0.3219 | 1131.2 | 720.1 | |
| 8.33 | -3.00 | 4.37 | -3.00 | -18.10 | 31.38 | 13.65 | 223.30 | 0.3286 | 1122.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -17.74 | 30.97 | 13.24 | 223.25 | 0.3199 | 642.0 | 606.2 | |
| 0.00 | 12.24 | 0.00 | 6.38 | -17.32 | 30.81 | 13.09 | 223.88 | 0.3132 | 754.0 | 769.4 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -16.81 | 30.68 | 12.96 | 224.82 | 0.3059 | 1103.0 | 882.4 | |
| 0.00 | 5.44 | 0.00 | 2.84 | -17.99 | 30.70 | 12.98 | 222.14 | 0.3198 | 616.0 | 616.3 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -16.51 | 30.60 | 12.87 | 225.37 | 0.3015 | 859.0 | 631.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -16.18 | 30.20 | 12.47 | 225.31 | 0.2931 | 911.0 | 785.1 | |
| 0.00 | 5.18 | 0.00 | 2.71 | -18.12 | 30.33 | 12.60 | 221.06 | 0.3172 | 817.0 | 740.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -18.36 | 30.31 | 12.59 | 220.50 | 0.3200 | 850.0 | 716.0 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -17.27 | 30.05 | 12.32 | 222.34 | 0.3040 | 734.0 | 534.9 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -18.16 | 29.47 | 11.75 | 219.04 | 0.3086 | -742.0 | -530.2 | |
| 2.21 | 58.81 | 1.15 | 30.52 | -17.46 | 29.30 | 11.58 | 220.17 | 0.2981 | -1042.5 | -505.7 | |
| 15.64 | -16.00 | 8.11 | -16.00 | -17.74 | 28.78 | 11.06 | 218.29 | 0.2961 | -1080.0 | 999999 | |
| 0.76 | -16.00 | 0.40 | -16.00 | -18.14 | 28.62 | 10.89 | 217.03 | 0.2996 | -657.4 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.23 | -17.63 | 28.34 | 10.61 | 217.43 | 0.2901 | -1047.0 | -825.2 | |
| 0.76 | 28.47 | 0.40 | 14.72 | -17.81 | 28.06 | 10.34 | 216.33 | 0.2898 | -858.1 | -558.7 | |
| 5.69 | -20.00 | 2.94 | -20.00 | -17.69 | 28.03 | 10.30 | 216.49 | 0.2878 | -1207.8 | 999999 | |
| 5.61 | -20.00 | 2.90 | -20.00 | -17.85 | 27.78 | 10.06 | 215.52 | 0.2874 | -1114.2 | 999999 | |
| 1.70 | -20.00 | 0.88 | -20.00 | -18.06 | 27.70 | 9.97 | 214.85 | 0.2895 | -827.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
