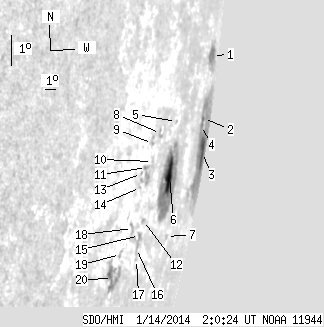

SDO HMI 2014-01-14 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.17 | 259.30 | 256.02 | 1186.29 | -9.92 | 101.61 | 84.43 | 260.45 | 0.9923 | 170.2 | 187.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.14 | 16.32 | 40.98 | 97.35 | -6.82 | 102.77 | 85.59 | 263.52 | 0.9967 | 446.6 | 328.5 | |
| 1.02 | 92.40 | 5.53 | 726.17 | -8.72 | 102.59 | 85.41 | 261.63 | 0.9963 | 405.9 | 234.4 | |
| 15.05 | -2.00 | 136.24 | -2.00 | -9.60 | 104.44 | 87.27 | 260.63 | 0.9985 | -9.8 | 999999 | |
| 1.11 | -2.00 | 5.83 | -2.00 | -8.95 | 102.28 | 85.10 | 261.41 | 0.9958 | 429.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 2.45 | -9.25 | 96.81 | 79.63 | 261.42 | 0.9827 | 358.0 | 375.1 | |
| 13.94 | 85.34 | 37.29 | 230.03 | -10.87 | 97.22 | 80.04 | 259.75 | 0.9838 | 432.9 | 74.3 | |
| 0.00 | 1.62 | 0.00 | 5.06 | -12.56 | 98.85 | 81.68 | 257.97 | 0.9882 | -197.0 | -231.2 | |
| 0.00 | 3.23 | 0.00 | 7.13 | -9.76 | 94.76 | 77.58 | 260.99 | 0.9755 | 418.0 | 386.5 | |
| 0.43 | 3.66 | 0.89 | 7.56 | -10.12 | 93.93 | 76.76 | 260.65 | 0.9722 | -222.4 | -91.2 | |
| 0.00 | 0.85 | 0.00 | 1.82 | -10.64 | 94.34 | 77.16 | 260.11 | 0.9738 | 353.0 | 332.5 | |
| 1.28 | 11.14 | 2.60 | 22.95 | -10.86 | 93.72 | 76.54 | 259.90 | 0.9713 | -198.3 | -12.5 | |
| 0.00 | 1.70 | 0.00 | 3.70 | -12.39 | 94.69 | 77.51 | 258.30 | 0.9749 | 99.0 | 69.8 | |
| 0.00 | 0.94 | 0.00 | 1.85 | -11.08 | 93.25 | 76.07 | 259.69 | 0.9693 | -268.0 | -282.3 | |
| 0.00 | 0.60 | 0.00 | 1.19 | -11.48 | 93.45 | 76.27 | 259.27 | 0.9701 | -198.0 | -216.6 | |
| 0.00 | 3.66 | 0.00 | 7.89 | -12.85 | 94.59 | 77.41 | 257.83 | 0.9744 | 42.0 | 56.1 | |
| 0.00 | 4.08 | 0.00 | 8.83 | -13.25 | 94.58 | 77.40 | 257.42 | 0.9744 | 177.0 | 153.7 | |
| 0.00 | 0.94 | 0.00 | 2.06 | -13.55 | 94.92 | 77.74 | 257.10 | 0.9756 | 53.0 | 67.5 | |
| 0.00 | 3.57 | 0.00 | 7.15 | -12.72 | 93.51 | 76.33 | 257.99 | 0.9702 | 284.0 | 216.9 | |
| 0.00 | 2.55 | 0.00 | 4.86 | -13.56 | 92.77 | 75.60 | 257.14 | 0.9670 | -207.0 | -166.9 | |
| 14.20 | 25.76 | 26.66 | 48.24 | -14.31 | 92.51 | 75.33 | 256.36 | 0.9658 | 283.4 | 54.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
