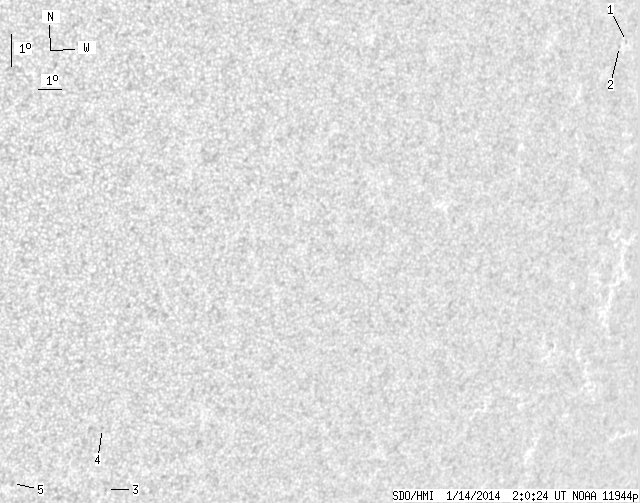

SDO HMI 2014-01-14 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.87 | 0.00 | 4.12 | -21.58 | 58.59 | 41.41 | 241.41 | 0.7002 | -299.8 | -325.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.59 | -11.79 | 72.52 | 55.34 | 258.73 | 0.8233 | -334.0 | -362.8 | |
| 0.00 | 0.85 | 0.00 | 0.73 | -11.96 | 72.20 | 55.02 | 258.51 | 0.8202 | -194.0 | -253.3 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -26.59 | 54.04 | 36.86 | 233.94 | 0.6660 | -155.0 | -224.7 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -24.68 | 53.20 | 36.02 | 236.09 | 0.6463 | -645.0 | -499.9 | |
| 0.00 | 2.04 | 0.00 | 1.29 | -26.55 | 50.24 | 33.06 | 231.55 | 0.6254 | -171.0 | -338.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
