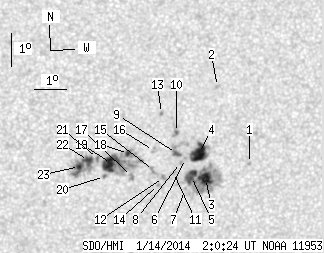

SDO HMI 2014-01-14 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.13 | 221.91 | 36.10 | 115.94 | -17.77 | 30.25 | 13.07 | 222.69 | 0.3187 | 284.3 | 85.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 02:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.63 | -17.67 | 33.17 | 15.99 | 228.59 | 0.3516 | 748.0 | 644.7 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -15.37 | 31.96 | 14.78 | 232.06 | 0.3134 | 776.0 | 644.6 | |
| 11.99 | 71.15 | 6.31 | 37.45 | -18.15 | 31.80 | 14.62 | 225.08 | 0.3402 | 1120.1 | 410.6 | |
| 17.68 | 23.63 | 9.27 | 12.39 | -17.40 | 31.51 | 14.33 | 226.23 | 0.3286 | 1083.9 | 502.5 | |
| 9.18 | -3.00 | 4.82 | -3.00 | -18.10 | 31.34 | 14.17 | 224.33 | 0.3344 | 1070.0 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -17.55 | 31.11 | 13.93 | 225.09 | 0.3256 | 901.0 | 710.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -18.46 | 31.18 | 14.00 | 223.21 | 0.3367 | 520.0 | 395.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -17.68 | 30.96 | 13.78 | 224.51 | 0.3253 | 815.0 | 715.8 | |
| 1.79 | 11.82 | 0.93 | 6.17 | -17.41 | 30.81 | 13.63 | 224.83 | 0.3205 | 996.3 | 769.7 | |
| 0.60 | 3.91 | 0.31 | 2.04 | -16.77 | 30.77 | 13.59 | 226.23 | 0.3129 | 1090.6 | 839.9 | |
| 0.00 | 2.72 | 0.00 | 1.42 | -17.99 | 30.76 | 13.58 | 223.42 | 0.3265 | 857.0 | 703.1 | |
| 0.00 | 2.72 | 0.00 | 1.42 | -18.14 | 30.45 | 13.28 | 222.44 | 0.3248 | 913.0 | 769.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -16.21 | 30.25 | 13.08 | 226.56 | 0.3005 | 898.0 | 729.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -18.36 | 30.31 | 13.13 | 221.68 | 0.3258 | 875.0 | 683.8 | |
| 0.00 | 4.34 | 0.00 | 2.26 | -17.93 | 30.12 | 12.94 | 222.20 | 0.3187 | 738.0 | 761.1 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -17.33 | 30.08 | 12.90 | 223.48 | 0.3111 | 275.0 | 264.5 | |
| 0.00 | 3.74 | 0.00 | 1.95 | -18.13 | 29.43 | 12.26 | 220.28 | 0.3135 | -719.0 | -527.0 | |
| 2.13 | 57.89 | 1.10 | 30.09 | -17.43 | 29.29 | 12.11 | 221.51 | 0.3035 | -1058.0 | -489.0 | |
| 17.51 | -18.00 | 9.09 | -18.00 | -17.74 | 28.78 | 11.60 | 219.61 | 0.3017 | -1044.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.14 | 28.58 | 11.40 | 218.28 | 0.3047 | -768.0 | -595.4 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -17.60 | 28.32 | 11.15 | 218.85 | 0.2951 | -1206.0 | -884.0 | |
| 5.53 | 23.89 | 2.86 | 12.37 | -17.66 | 28.04 | 10.87 | 218.01 | 0.2930 | -1194.1 | -775.2 | |
| 2.72 | -22.00 | 1.41 | -22.00 | -17.85 | 27.77 | 10.59 | 216.92 | 0.2927 | -1167.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
