SDO HMI 2014-01-14 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.44 | 206.88 | 282.45 | 1055.06 | -10.00 | 100.90 | 84.81 | 260.36 | 0.9931 | 235.9 | 211.6 | |
|
previous
or next observation for the same group /

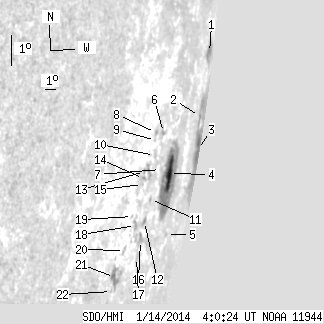

back to the solar disc SDO HMI 2014-01-14 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.74 | 12.07 | 57.78 | 97.96 | -6.80 | 102.69 | 86.61 | 263.46 | 0.9980 | 372.6 | 317.4 | |
| 0.85 | 59.01 | 5.52 | 595.39 | -8.77 | 102.12 | 86.03 | 261.54 | 0.9972 | 315.8 | 305.7 | |
| 13.77 | -2.00 | 153.73 | -2.00 | -9.64 | 103.68 | 87.59 | 260.57 | 0.9988 | 162.4 | 999999 | |
| 14.79 | 77.29 | 43.81 | 231.01 | -10.86 | 97.10 | 81.01 | 259.72 | 0.9866 | 363.0 | 51.4 | |
| 0.00 | 0.85 | 0.00 | 3.09 | -12.56 | 98.99 | 82.90 | 257.91 | 0.9912 | -317.0 | -323.1 | |
| 0.94 | 2.30 | 2.27 | 5.55 | -9.79 | 94.92 | 78.84 | 260.91 | 0.9800 | 441.1 | 310.3 | |
| 0.00 | 1.36 | 0.00 | 3.47 | -10.87 | 95.46 | 79.38 | 259.79 | 0.9817 | 92.0 | 98.9 | |
| 0.00 | 1.36 | 0.00 | 3.04 | -9.88 | 93.79 | 77.70 | 260.87 | 0.9759 | -15.0 | 6.4 | |
| 0.00 | 0.60 | 0.00 | 1.34 | -10.11 | 93.97 | 77.89 | 260.63 | 0.9766 | -206.0 | -158.4 | |
| 0.00 | 1.53 | 0.00 | 3.52 | -10.54 | 94.20 | 78.12 | 260.17 | 0.9774 | 252.0 | 250.9 | |
| 0.00 | 1.53 | 0.00 | 3.66 | -11.82 | 94.84 | 78.76 | 258.84 | 0.9795 | 214.0 | 211.5 | |
| 1.53 | 3.40 | 3.60 | 8.00 | -12.50 | 94.64 | 78.55 | 258.15 | 0.9787 | 136.9 | 68.7 | |
| 0.00 | 1.36 | 0.00 | 2.90 | -11.09 | 93.25 | 77.17 | 259.64 | 0.9737 | -234.0 | -256.8 | |
| 0.68 | 7.82 | 1.46 | 17.24 | -11.30 | 93.30 | 77.21 | 259.43 | 0.9739 | -241.0 | -87.4 | |
| 0.00 | 0.68 | 0.00 | 1.46 | -11.48 | 93.32 | 77.24 | 259.24 | 0.9739 | -88.0 | -115.8 | |
| 0.00 | 10.63 | 0.00 | 25.24 | -13.07 | 94.67 | 78.58 | 257.57 | 0.9787 | 199.0 | 126.1 | |
| 0.00 | 2.64 | 0.00 | 6.24 | -13.59 | 94.66 | 78.57 | 257.04 | 0.9786 | 84.0 | 40.8 | |
| 0.00 | 3.57 | 0.00 | 7.73 | -12.70 | 93.52 | 77.43 | 257.98 | 0.9745 | 224.0 | 212.4 | |
| 0.00 | 1.02 | 0.00 | 2.10 | -12.48 | 92.88 | 76.80 | 258.23 | 0.9721 | -123.0 | -138.9 | |
| 0.00 | 2.47 | 0.00 | 5.06 | -13.51 | 92.83 | 76.74 | 257.17 | 0.9717 | -146.0 | -115.2 | |
| 7.14 | 14.62 | 14.28 | 29.53 | -14.37 | 92.39 | 76.31 | 256.29 | 0.9699 | 323.4 | 233.5 | |
| 0.00 | 0.77 | 0.00 | 1.53 | -14.79 | 92.45 | 76.37 | 255.86 | 0.9701 | 103.0 | 121.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
