SDO HMI 2014-01-14 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.73 | 232.90 | 21.22 | 134.48 | 5.86 | 45.17 | 29.09 | 289.46 | 0.5145 | -840.5 | -403.0 | |
|
previous
or next observation for the same group /

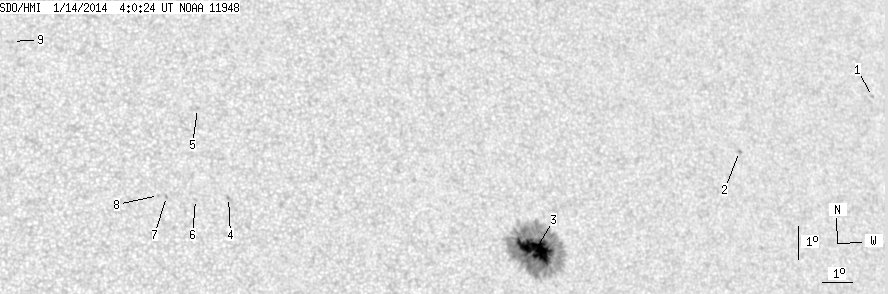

back to the solar disc SDO HMI 2014-01-14 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.89 | 10.94 | 58.41 | 42.32 | 290.39 | 0.7076 | -606.0 | -529.1 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 8.99 | 52.93 | 36.85 | 290.15 | 0.6333 | -703.0 | -640.2 | |
| 36.73 | 222.50 | 21.22 | 128.60 | 5.73 | 45.39 | 29.31 | 288.93 | 0.5169 | -1162.5 | -419.1 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 6.97 | 35.44 | 19.35 | 300.52 | 0.3835 | -794.0 | -628.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 9.64 | 34.60 | 18.51 | 307.44 | 0.3960 | 713.0 | 564.7 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 6.89 | 34.40 | 18.31 | 301.73 | 0.3684 | -745.0 | -519.1 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 6.95 | 33.50 | 17.41 | 303.21 | 0.3566 | 776.0 | 569.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 6.98 | 33.25 | 17.16 | 303.65 | 0.3534 | 678.0 | 487.3 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 11.57 | 28.93 | 12.85 | 321.54 | 0.3518 | 789.0 | 603.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
