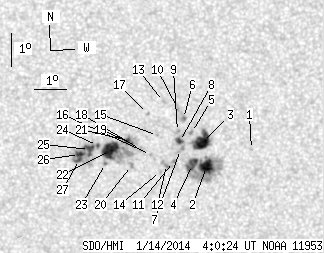

SDO HMI 2014-01-14 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.98 | 211.91 | 36.18 | 111.21 | -17.75 | 30.16 | 14.07 | 224.79 | 0.3297 | 211.0 | 88.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.60 | 33.20 | 17.12 | 230.58 | 0.3647 | 769.0 | 620.5 | |
| 12.84 | 63.43 | 6.79 | 33.56 | -18.14 | 31.80 | 15.71 | 227.09 | 0.3530 | 1099.2 | 428.7 | |
| 16.41 | 24.23 | 8.65 | 12.77 | -17.39 | 31.60 | 15.52 | 228.43 | 0.3428 | 1112.9 | 629.8 | |
| 7.40 | -2.00 | 3.90 | -2.00 | -18.09 | 31.34 | 15.26 | 226.40 | 0.3470 | 1095.6 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.21 | -17.13 | 31.23 | 15.14 | 228.39 | 0.3354 | 1147.0 | 861.9 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -16.71 | 30.94 | 14.86 | 228.85 | 0.3276 | 1111.0 | 964.4 | |
| 0.00 | 4.00 | 0.00 | 2.10 | -17.65 | 30.92 | 14.84 | 226.63 | 0.3372 | 792.0 | 713.5 | |
| 2.47 | 5.10 | 1.29 | 2.68 | -17.40 | 30.87 | 14.78 | 227.08 | 0.3340 | 1043.3 | 834.9 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -17.10 | 30.78 | 14.70 | 227.62 | 0.3297 | 870.0 | 757.2 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -16.38 | 30.72 | 14.64 | 229.25 | 0.3215 | 868.0 | 715.1 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -18.01 | 30.73 | 14.64 | 225.45 | 0.3389 | 1051.0 | 859.8 | |
| 0.00 | 4.85 | 0.00 | 2.55 | -18.11 | 30.51 | 14.43 | 224.83 | 0.3374 | 946.0 | 722.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -16.21 | 30.27 | 14.18 | 228.82 | 0.3140 | 842.0 | 596.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -18.32 | 30.34 | 14.25 | 224.02 | 0.3378 | 829.0 | 598.4 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -17.23 | 30.15 | 14.07 | 226.12 | 0.3236 | 610.0 | 432.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.81 | 29.98 | 13.89 | 224.44 | 0.3279 | 590.0 | 476.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -16.58 | 29.79 | 13.70 | 226.97 | 0.3120 | -484.0 | -449.1 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -17.67 | 29.65 | 13.56 | 224.11 | 0.3224 | -630.0 | -490.8 | |
| 0.68 | 52.20 | 0.36 | 27.23 | -17.49 | 29.35 | 13.26 | 223.90 | 0.3170 | -895.9 | -433.1 | |
| 0.00 | 2.55 | 0.00 | 1.34 | -18.16 | 29.40 | 13.31 | 222.50 | 0.3252 | -686.0 | -605.4 | |
| 2.13 | -19.00 | 1.11 | -19.00 | -17.40 | 29.21 | 13.13 | 223.82 | 0.3144 | -1115.5 | 999999 | |
| 17.26 | -19.00 | 8.99 | -19.00 | -17.71 | 28.70 | 12.61 | 222.00 | 0.3122 | -1084.3 | 999999 | |
| 0.00 | 1.87 | 0.00 | 0.98 | -18.11 | 28.56 | 12.48 | 220.83 | 0.3155 | -756.0 | -622.2 | |
| 0.60 | 33.33 | 0.31 | 17.33 | -17.57 | 28.27 | 12.19 | 221.39 | 0.3058 | -1133.0 | -593.1 | |
| 5.19 | -24.00 | 2.70 | -24.00 | -17.69 | 28.03 | 11.94 | 220.55 | 0.3046 | -1172.0 | 999999 | |
| 2.81 | -24.00 | 1.46 | -24.00 | -17.85 | 27.72 | 11.64 | 219.49 | 0.3033 | -1206.8 | 999999 | |
| 1.19 | -24.00 | 0.62 | -24.00 | -18.00 | 27.73 | 11.65 | 219.18 | 0.3053 | -853.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
