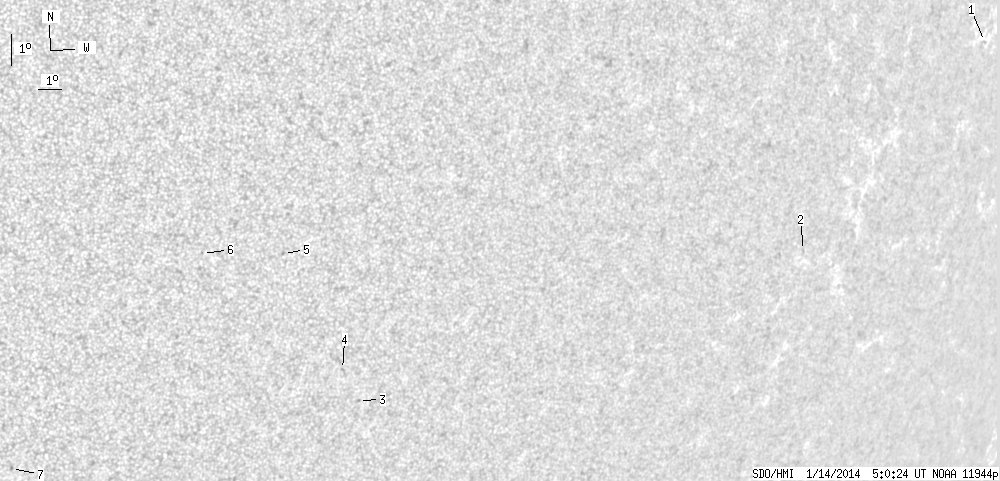

SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.58 | 0.00 | 5.64 | -22.37 | 59.63 | 44.09 | 240.52 | 0.7220 | -247.9 | -197.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 1.16 | -14.12 | 80.05 | 64.51 | 256.47 | 0.9022 | -404.0 | -311.9 | |
| 0.00 | 1.11 | 0.00 | 1.02 | -21.04 | 72.40 | 56.86 | 247.84 | 0.8460 | 446.0 | 385.8 | |
| 0.00 | 1.28 | 0.00 | 0.86 | -26.81 | 53.70 | 38.16 | 234.39 | 0.6807 | -357.0 | -407.6 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -25.86 | 52.67 | 37.13 | 235.10 | 0.6647 | -223.0 | -258.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -22.35 | 49.21 | 33.67 | 238.11 | 0.6062 | -167.0 | -178.8 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -22.46 | 46.18 | 30.64 | 235.89 | 0.5711 | -319.0 | -285.8 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -29.49 | 40.88 | 25.34 | 220.94 | 0.5708 | -711.0 | -523.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
