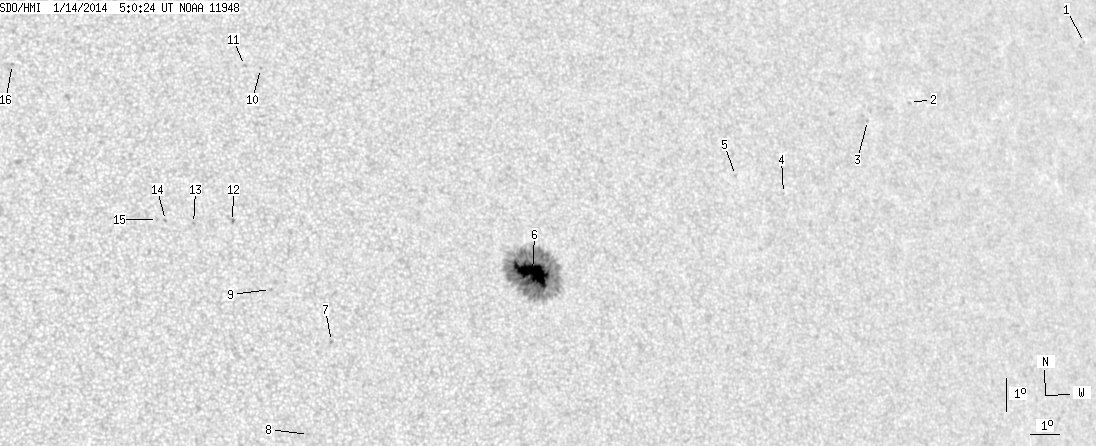

SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.41 | 231.99 | 21.74 | 134.98 | 5.91 | 45.27 | 29.73 | 289.16 | 0.5235 | -664.5 | -386.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.61 | 13.96 | 69.09 | 53.55 | 290.09 | 0.8334 | -375.0 | -340.6 | |
| 0.00 | 1.19 | 0.00 | 0.87 | 11.59 | 60.32 | 44.78 | 290.24 | 0.7378 | -671.0 | -561.0 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 10.94 | 58.43 | 42.89 | 290.15 | 0.7142 | -704.0 | -563.3 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 8.53 | 54.72 | 39.18 | 288.38 | 0.6607 | -309.0 | -336.6 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 8.99 | 52.95 | 37.41 | 289.87 | 0.6403 | -670.0 | -565.4 | |
| 37.41 | 216.57 | 21.74 | 125.87 | 5.71 | 45.39 | 29.85 | 288.58 | 0.5246 | -1199.8 | -422.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 3.45 | 38.64 | 23.10 | 288.57 | 0.4149 | 862.0 | 635.5 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 0.67 | 37.86 | 22.32 | 282.43 | 0.3905 | 736.0 | 596.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 4.95 | 36.74 | 21.20 | 293.73 | 0.3952 | 763.0 | 672.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 11.63 | 36.81 | 21.27 | 307.45 | 0.4494 | 576.0 | 549.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 11.71 | 36.30 | 20.76 | 308.26 | 0.4438 | 803.0 | 687.2 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 6.96 | 35.61 | 20.07 | 299.58 | 0.3935 | -816.0 | -701.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 6.86 | 34.38 | 18.84 | 300.96 | 0.3756 | -721.0 | -621.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 6.93 | 33.51 | 17.97 | 302.34 | 0.3641 | 651.0 | 557.7 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 6.96 | 33.26 | 17.72 | 302.76 | 0.3609 | 750.0 | 485.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 11.57 | 28.97 | 13.43 | 320.31 | 0.3580 | 796.0 | 680.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
