SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.25 | 55.71 | 8.83 | 30.20 | 16.37 | 27.35 | 11.81 | 331.16 | 0.4082 | 135.4 | -15.1 | |
|
previous
or next observation for the same group /

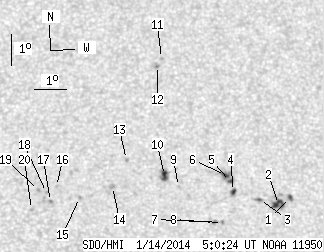

back to the solar disc SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 2.55 | 0.65 | 1.39 | 16.04 | 30.10 | 14.56 | 325.22 | 0.4254 | -847.1 | -668.7 | |
| 5.61 | 12.75 | 3.06 | 6.95 | 15.81 | 29.70 | 14.16 | 325.64 | 0.4189 | -1001.5 | -679.2 | |
| 0.60 | 2.81 | 0.32 | 1.53 | 15.96 | 29.11 | 13.57 | 326.96 | 0.4156 | -846.9 | -613.9 | |
| 1.87 | 3.15 | 1.02 | 1.71 | 16.19 | 28.31 | 12.77 | 328.84 | 0.4120 | -911.2 | -723.3 | |
| 1.11 | 9.69 | 0.60 | 5.28 | 16.51 | 28.24 | 12.70 | 329.39 | 0.4156 | -830.8 | -508.4 | |
| 2.21 | -5.00 | 1.20 | -5.00 | 16.70 | 28.09 | 12.55 | 329.91 | 0.4170 | -739.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 15.21 | 27.90 | 12.36 | 328.34 | 0.3953 | 588.0 | 415.6 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 15.21 | 27.65 | 12.11 | 328.86 | 0.3932 | -974.0 | -781.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 16.32 | 26.59 | 11.05 | 332.51 | 0.4003 | 515.0 | 480.9 | |
| 3.66 | 6.72 | 1.98 | 3.63 | 16.67 | 26.17 | 10.63 | 333.80 | 0.4022 | 789.2 | 466.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 20.42 | 26.32 | 10.78 | 337.32 | 0.4566 | 726.0 | 642.1 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 20.19 | 26.18 | 10.64 | 337.39 | 0.4525 | 845.0 | 714.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 17.16 | 25.01 | 9.47 | 336.84 | 0.4015 | 826.0 | 745.8 | |
| 0.00 | 3.23 | 0.00 | 1.73 | 16.30 | 24.53 | 8.99 | 337.02 | 0.3858 | 798.0 | 686.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 15.94 | 23.49 | 7.95 | 339.08 | 0.3742 | 903.0 | 735.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 16.28 | 22.79 | 7.25 | 341.09 | 0.3755 | 752.0 | 640.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 15.81 | 22.59 | 7.05 | 341.15 | 0.3672 | 1025.0 | 879.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 16.09 | 22.48 | 6.94 | 341.69 | 0.3709 | 804.0 | 663.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 16.15 | 22.23 | 6.69 | 342.34 | 0.3706 | 864.0 | 686.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 15.55 | 21.99 | 6.45 | 342.42 | 0.3602 | 905.0 | 712.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
