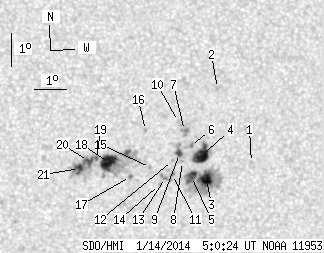

SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.55 | 204.95 | 31.82 | 107.78 | -17.74 | 30.15 | 14.61 | 225.85 | 0.3358 | 270.6 | 85.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.54 | -17.59 | 33.24 | 17.70 | 231.49 | 0.3719 | 785.0 | 574.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -15.39 | 31.94 | 16.40 | 234.74 | 0.3349 | 787.0 | 669.5 | |
| 9.44 | 62.58 | 5.01 | 33.19 | -18.14 | 31.83 | 16.29 | 228.09 | 0.3598 | 1178.0 | 488.5 | |
| 16.07 | 23.13 | 8.49 | 12.22 | -17.42 | 31.60 | 16.06 | 229.32 | 0.3497 | 1135.6 | 627.3 | |
| 7.06 | -3.00 | 3.73 | -3.00 | -18.06 | 31.34 | 15.80 | 227.43 | 0.3530 | 1073.6 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.84 | -17.12 | 31.22 | 15.68 | 229.36 | 0.3420 | 1012.0 | 869.3 | |
| 0.00 | 6.29 | 0.00 | 3.31 | -16.67 | 31.00 | 15.46 | 230.02 | 0.3347 | 1031.0 | 857.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.61 | 31.01 | 15.47 | 227.86 | 0.3444 | 886.0 | 726.5 | |
| 2.55 | 7.06 | 1.34 | 3.71 | -17.37 | 30.89 | 15.35 | 228.20 | 0.3405 | 1072.4 | 810.7 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -16.40 | 30.78 | 15.24 | 230.29 | 0.3293 | 867.0 | 646.1 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -18.01 | 30.72 | 15.18 | 226.46 | 0.3452 | 875.0 | 724.8 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -17.58 | 30.69 | 15.15 | 227.34 | 0.3402 | 807.0 | 661.8 | |
| 0.00 | 4.59 | 0.00 | 2.42 | -18.10 | 30.51 | 14.97 | 225.86 | 0.3436 | 709.0 | 693.5 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -18.32 | 30.33 | 14.79 | 225.06 | 0.3439 | 691.0 | 548.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -17.81 | 30.00 | 14.46 | 225.57 | 0.3344 | 562.0 | 382.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -16.69 | 29.75 | 14.21 | 227.70 | 0.3195 | -858.0 | -612.8 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -18.09 | 29.39 | 13.85 | 223.74 | 0.3305 | -613.0 | -436.2 | |
| 16.24 | 55.61 | 8.48 | 29.07 | -17.68 | 28.65 | 13.11 | 223.16 | 0.3174 | -1111.5 | -512.0 | |
| 0.68 | 30.10 | 0.35 | 15.68 | -17.56 | 28.26 | 12.72 | 222.59 | 0.3117 | -1160.6 | -679.3 | |
| 3.66 | -19.00 | 1.90 | -19.00 | -17.66 | 28.02 | 12.48 | 221.84 | 0.3100 | -1224.2 | 999999 | |
| 4.85 | -19.00 | 2.52 | -19.00 | -17.88 | 27.75 | 12.21 | 220.75 | 0.3097 | -1114.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
