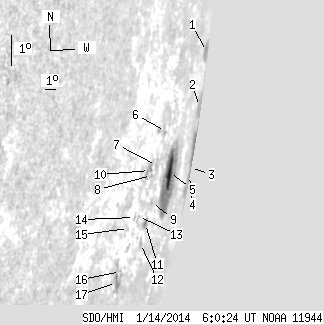

SDO HMI 2014-01-14 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.52 | 153.25 | 226.17 | 801.88 | -10.10 | 100.28 | 85.29 | 260.22 | 0.9937 | 265.8 | 125.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.87 | 7.82 | 66.20 | 85.50 | -6.77 | 102.80 | 87.81 | 263.41 | 0.9991 | 222.6 | 140.4 | |
| 6.55 | 9.52 | 82.15 | 109.73 | -8.41 | 102.98 | 87.99 | 261.77 | 0.9991 | 241.5 | 136.5 | |
| 0.85 | 22.36 | 14.85 | 267.12 | -10.18 | 103.73 | 88.73 | 259.94 | 0.9995 | 217.5 | 198.0 | |
| 0.26 | -3.00 | 4.73 | -3.00 | -10.39 | 104.22 | 89.22 | 259.70 | 0.9997 | 158.3 | 999999 | |
| 11.99 | 69.64 | 39.79 | 235.59 | -10.85 | 97.02 | 82.02 | 259.68 | 0.9893 | 488.3 | 53.2 | |
| 0.00 | 1.96 | 0.00 | 5.23 | -9.77 | 94.96 | 79.97 | 260.88 | 0.9837 | 247.0 | 266.4 | |
| 0.00 | 4.59 | 0.00 | 11.83 | -10.83 | 94.49 | 79.49 | 259.82 | 0.9820 | 264.0 | 284.8 | |
| 0.00 | 1.45 | 0.00 | 3.55 | -11.17 | 94.01 | 79.02 | 259.50 | 0.9804 | -196.0 | -180.8 | |
| 0.00 | 2.04 | 0.00 | 5.36 | -11.92 | 94.85 | 79.85 | 258.70 | 0.9830 | 143.0 | 124.7 | |
| 0.00 | 7.57 | 0.00 | 17.88 | -11.05 | 93.58 | 78.58 | 259.64 | 0.9789 | -328.0 | -184.1 | |
| 2.81 | 4.42 | 7.19 | 11.34 | -12.57 | 94.60 | 79.61 | 258.04 | 0.9822 | 96.8 | 114.3 | |
| 0.00 | 3.49 | 0.00 | 8.92 | -13.19 | 94.52 | 79.52 | 257.42 | 0.9818 | 219.0 | 187.8 | |
| 0.00 | 0.60 | 0.00 | 1.39 | -12.46 | 93.33 | 78.34 | 258.21 | 0.9779 | 111.0 | 79.7 | |
| 0.00 | 0.94 | 0.00 | 2.08 | -12.53 | 92.81 | 77.81 | 258.15 | 0.9760 | -217.0 | -209.8 | |
| 0.00 | 0.43 | 0.00 | 0.91 | -12.90 | 92.33 | 77.33 | 257.79 | 0.9741 | -117.0 | -105.0 | |
| 0.00 | 0.77 | 0.00 | 1.68 | -14.18 | 92.60 | 77.60 | 256.46 | 0.9750 | 105.0 | 92.1 | |
| 5.19 | 15.65 | 11.26 | 33.77 | -14.53 | 92.43 | 77.43 | 256.11 | 0.9744 | 344.2 | 127.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
