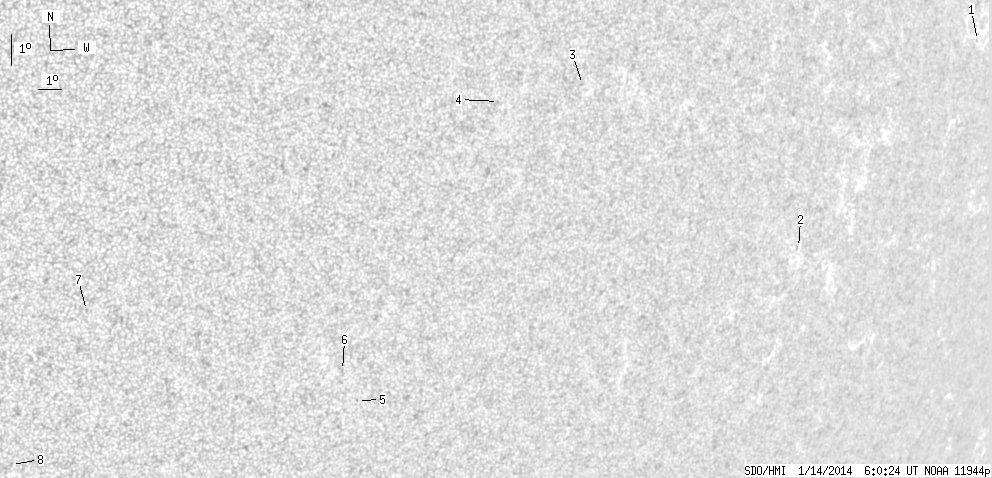

SDO HMI 2014-01-14 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.82 | 0.00 | 4.85 | -22.46 | 56.82 | 41.83 | 239.77 | 0.7015 | -283.2 | -267.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.59 | -14.14 | 80.16 | 65.16 | 256.47 | 0.9069 | -338.0 | -339.7 | |
| 0.00 | 0.68 | 0.00 | 0.64 | -21.01 | 72.48 | 57.48 | 247.99 | 0.8512 | 523.0 | 416.0 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -16.72 | 59.84 | 44.84 | 250.90 | 0.7171 | -5.0 | -44.3 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -17.41 | 56.47 | 41.48 | 249.00 | 0.6793 | -334.0 | -394.8 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -26.88 | 53.82 | 38.82 | 234.66 | 0.6878 | -656.0 | -585.4 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -25.96 | 52.82 | 37.83 | 235.36 | 0.6726 | -600.0 | -477.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -24.46 | 42.43 | 27.44 | 230.17 | 0.5483 | -415.0 | -395.1 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -29.45 | 40.92 | 25.93 | 221.58 | 0.5759 | -441.0 | -353.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
