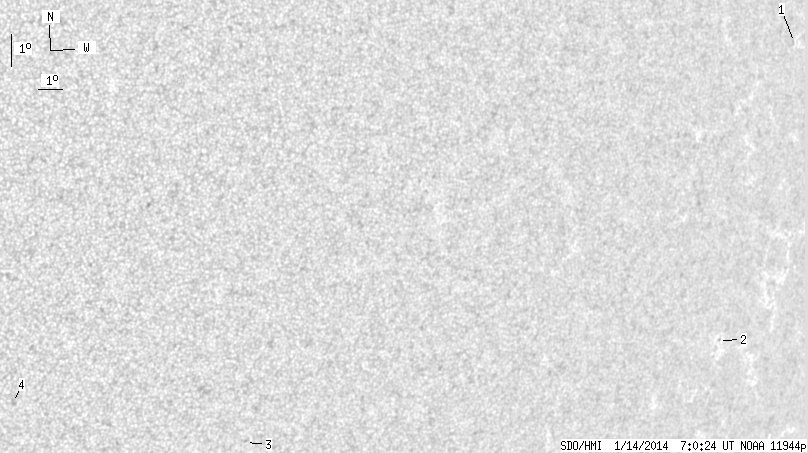

SDO HMI 2014-01-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.11 | 0.00 | 3.60 | -21.61 | 55.41 | 40.96 | 240.00 | 0.6852 | -238.0 | -158.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.63 | -11.93 | 72.50 | 58.05 | 258.71 | 0.8487 | -447.0 | -348.0 | |
| 0.00 | 0.85 | 0.00 | 0.81 | -21.04 | 72.37 | 57.92 | 248.01 | 0.8550 | 138.0 | 277.6 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -25.38 | 51.65 | 37.20 | 235.80 | 0.6628 | -520.0 | -363.1 | |
| 0.00 | 2.98 | 0.00 | 1.77 | -24.48 | 42.40 | 27.95 | 230.61 | 0.5542 | -123.0 | -245.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
