SDO HMI 2014-01-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.35 | 232.09 | 22.49 | 136.68 | 5.89 | 45.43 | 30.98 | 288.31 | 0.5411 | -902.0 | -379.2 | |
|
previous
or next observation for the same group /

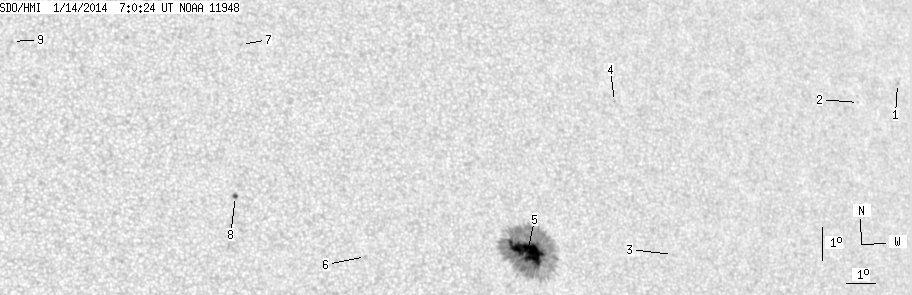

back to the solar disc SDO HMI 2014-01-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.08 | 11.55 | 60.29 | 45.84 | 289.79 | 0.7494 | -469.0 | -504.9 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 10.87 | 58.49 | 44.04 | 289.60 | 0.7271 | -425.0 | -382.6 | |
| 0.00 | 0.68 | 0.00 | 0.42 | 5.88 | 50.58 | 36.13 | 285.70 | 0.6115 | -179.0 | -313.6 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 10.43 | 48.93 | 34.48 | 293.64 | 0.6100 | -404.0 | -438.8 | |
| 37.16 | 223.57 | 21.84 | 131.48 | 5.75 | 45.40 | 30.95 | 288.02 | 0.5402 | -1220.0 | -389.1 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 5.40 | 39.92 | 25.47 | 290.95 | 0.4604 | 601.0 | 439.8 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 11.70 | 36.30 | 21.85 | 306.85 | 0.4574 | 764.0 | 642.3 | |
| 1.19 | 1.96 | 0.65 | 1.06 | 7.07 | 35.80 | 21.35 | 298.35 | 0.4123 | -934.8 | -776.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 11.62 | 29.03 | 14.58 | 318.10 | 0.3708 | 765.0 | 681.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
