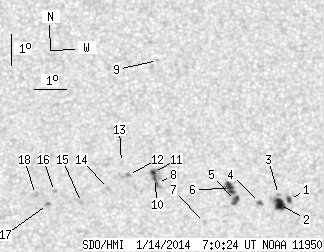

SDO HMI 2014-01-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.88 | 61.07 | 12.52 | 33.24 | 16.32 | 27.33 | 12.88 | 329.01 | 0.4161 | -155.4 | 79.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 3.06 | 0.84 | 1.68 | 16.09 | 30.19 | 15.74 | 323.20 | 0.4370 | -771.4 | -593.8 | |
| 7.91 | 12.59 | 4.34 | 6.90 | 15.92 | 29.86 | 15.41 | 323.55 | 0.4318 | -1090.3 | -767.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 16.24 | 29.85 | 15.40 | 324.01 | 0.4357 | -676.0 | -552.4 | |
| 0.85 | 2.72 | 0.47 | 1.49 | 15.97 | 29.22 | 14.77 | 324.75 | 0.4266 | -900.1 | -640.5 | |
| 3.06 | 14.12 | 1.67 | 7.71 | 16.02 | 28.47 | 14.02 | 326.21 | 0.4204 | -1119.2 | -719.3 | |
| 5.87 | -5.00 | 3.21 | -5.00 | 16.40 | 28.34 | 13.89 | 326.97 | 0.4242 | -979.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 15.31 | 27.44 | 12.99 | 327.21 | 0.4021 | -701.0 | -592.1 | |
| 1.02 | 12.16 | 0.55 | 6.60 | 16.52 | 26.04 | 11.59 | 331.63 | 0.4072 | 817.9 | 539.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 20.46 | 26.32 | 11.87 | 335.35 | 0.4641 | 656.0 | 532.9 | |
| 0.77 | -8.00 | 0.42 | -8.00 | 16.67 | 25.96 | 11.51 | 331.99 | 0.4087 | 926.9 | 999999 | |
| 1.87 | -8.00 | 1.02 | -8.00 | 16.86 | 25.94 | 11.49 | 332.25 | 0.4112 | 836.5 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 16.79 | 25.15 | 10.70 | 333.81 | 0.4045 | 926.0 | 751.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 17.17 | 24.95 | 10.50 | 334.65 | 0.4085 | 763.0 | 615.3 | |
| 0.00 | 2.04 | 0.00 | 1.10 | 16.34 | 24.50 | 10.05 | 334.70 | 0.3935 | 937.0 | 732.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 15.89 | 23.64 | 9.19 | 336.13 | 0.3811 | 722.0 | 619.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 16.22 | 22.81 | 8.36 | 338.40 | 0.3810 | 879.0 | 694.5 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 15.81 | 22.58 | 8.13 | 338.53 | 0.3734 | 1021.0 | 874.5 | |
| 0.00 | 2.72 | 0.00 | 1.45 | 16.12 | 22.22 | 7.77 | 339.70 | 0.3760 | 759.0 | 670.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
