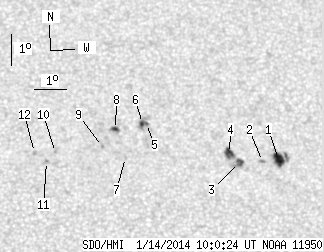

SDO HMI 2014-01-14 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.36 | 54.26 | 11.76 | 29.81 | 16.30 | 27.83 | 15.02 | 324.97 | 0.4343 | -204.9 | -158.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.27 | 17.77 | 5.14 | 9.86 | 16.05 | 30.01 | 17.20 | 320.71 | 0.4507 | -1071.0 | -652.0 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 15.98 | 29.49 | 16.68 | 321.46 | 0.4447 | -1017.0 | -820.9 | |
| 2.89 | 15.82 | 1.59 | 8.70 | 15.93 | 28.75 | 15.94 | 322.63 | 0.4370 | -1065.3 | -768.4 | |
| 5.02 | -3.00 | 2.76 | -3.00 | 16.21 | 28.46 | 15.64 | 323.54 | 0.4376 | -979.9 | 999999 | |
| 0.43 | 9.18 | 0.23 | 5.02 | 17.10 | 25.89 | 13.08 | 329.42 | 0.4269 | 782.2 | 381.5 | |
| 1.79 | -5.00 | 0.98 | -5.00 | 17.10 | 25.76 | 12.95 | 329.66 | 0.4259 | 936.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 16.02 | 25.15 | 12.34 | 329.48 | 0.4062 | 532.0 | 398.5 | |
| 1.96 | 3.83 | 1.06 | 2.08 | 16.90 | 24.90 | 12.08 | 331.11 | 0.4163 | 964.9 | 790.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 16.35 | 24.45 | 11.64 | 331.34 | 0.4053 | 970.0 | 845.8 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 16.14 | 22.97 | 10.16 | 334.24 | 0.3915 | 747.0 | 575.1 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 15.86 | 22.68 | 9.86 | 334.57 | 0.3853 | 944.0 | 878.5 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 16.14 | 22.32 | 9.50 | 335.69 | 0.3869 | 982.0 | 819.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
