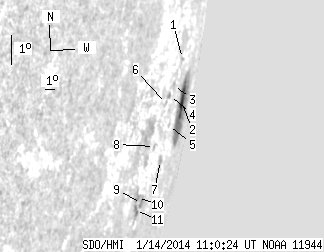

SDO HMI 2014-01-14 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.56 | 81.38 | 74.82 | 339.16 | -11.48 | 95.80 | 83.53 | 258.96 | 0.9923 | 152.6 | -0.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 4.33 | -9.74 | 95.04 | 82.77 | 260.77 | 0.9912 | 330.0 | 334.4 | |
| 11.05 | 50.25 | 51.50 | 248.25 | -10.90 | 96.72 | 84.45 | 259.50 | 0.9945 | 149.7 | -47.5 | |
| 0.00 | 2.04 | 0.00 | 6.69 | -10.62 | 94.15 | 81.88 | 259.93 | 0.9890 | 225.0 | 234.0 | |
| 1.28 | 2.04 | 3.92 | 6.28 | -10.95 | 93.73 | 81.46 | 259.61 | 0.9878 | -133.4 | -102.0 | |
| 0.00 | 1.28 | 0.00 | 4.41 | -11.78 | 94.72 | 82.45 | 258.72 | 0.9902 | 274.0 | 262.9 | |
| 0.00 | 1.02 | 0.00 | 3.05 | -11.21 | 93.46 | 81.19 | 259.36 | 0.9871 | -284.0 | -238.9 | |
| 0.00 | 4.34 | 0.00 | 14.53 | -12.85 | 94.62 | 82.35 | 257.65 | 0.9899 | 175.0 | 163.5 | |
| 0.00 | 1.62 | 0.00 | 4.56 | -12.56 | 92.90 | 80.63 | 258.02 | 0.9853 | -83.0 | -92.0 | |
| 2.13 | 17.60 | 5.96 | 47.06 | -14.29 | 92.96 | 80.69 | 256.26 | 0.9853 | 293.5 | 148.5 | |
| 2.04 | -9.00 | 5.30 | -9.00 | -14.17 | 92.05 | 79.78 | 256.41 | 0.9825 | 124.7 | 999999 | |
| 3.06 | -9.00 | 8.14 | -9.00 | -14.55 | 92.25 | 79.98 | 256.02 | 0.9831 | 257.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
