SDO HMI 2014-01-14 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.86 | 472.35 | 38.92 | 239.20 | -16.43 | 12.92 | 0.65 | 182.92 | 0.2090 | 1132.5 | 439.9 | |
|
previous
or next observation for the same group /

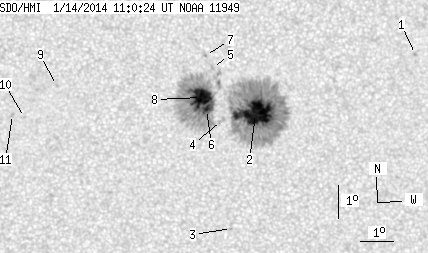

back to the solar disc SDO HMI 2014-01-14 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | -14.82 | 18.47 | 6.20 | 210.13 | 0.2089 | 948.0 | 712.0 | |
| 49.06 | 282.64 | 24.86 | 143.21 | -16.61 | 13.59 | 1.32 | 185.99 | 0.2123 | 1428.2 | 474.5 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -20.10 | 12.86 | 0.59 | 182.05 | 0.2707 | -697.0 | -463.1 | |
| 0.00 | 4.00 | 0.00 | 2.03 | -16.82 | 12.54 | 0.27 | 181.22 | 0.2148 | 602.0 | 575.1 | |
| 0.00 | 2.30 | 0.00 | 1.16 | -15.23 | 12.27 | -0.00 | 179.99 | 0.1873 | 463.0 | 313.5 | |
| 2.55 | 176.52 | 1.29 | 89.31 | -16.49 | 12.08 | -0.19 | 179.13 | 0.2090 | 1135.9 | 420.9 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -14.87 | 12.05 | -0.22 | 178.84 | 0.1811 | -837.0 | -564.2 | |
| 25.25 | -6.00 | 12.77 | -6.00 | -16.13 | 11.93 | -0.34 | 178.38 | 0.2029 | 1431.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -15.75 | 7.48 | -4.79 | 157.68 | 0.2124 | -886.0 | -745.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -16.70 | 6.47 | -5.80 | 155.47 | 0.2342 | -851.0 | -588.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -16.61 | 6.10 | -6.17 | 153.93 | 0.2354 | -853.0 | -665.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
