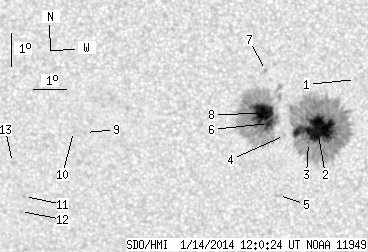

SDO HMI 2014-01-14 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.25 | 474.70 | 46.73 | 240.45 | -16.48 | 12.87 | 1.15 | 185.26 | 0.2106 | 1067.1 | 413.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-14 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | -15.11 | 14.74 | 3.02 | 195.42 | 0.1922 | -776.0 | -488.4 | |
| 55.94 | 287.12 | 28.36 | 145.52 | -16.61 | 13.59 | 1.87 | 188.47 | 0.2135 | 1384.2 | 448.6 | |
| 0.51 | -2.00 | 0.26 | -2.00 | -17.00 | 13.32 | 1.60 | 187.01 | 0.2195 | 832.2 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -16.79 | 12.58 | 0.86 | 183.84 | 0.2147 | 812.0 | 654.1 | |
| 0.00 | 2.38 | 0.00 | 1.22 | -18.61 | 12.40 | 0.68 | 182.62 | 0.2455 | 539.0 | 526.3 | |
| 6.89 | 176.76 | 3.49 | 89.42 | -16.43 | 12.08 | 0.36 | 181.68 | 0.2081 | 1126.6 | 404.7 | |
| 0.00 | 1.28 | 0.00 | 0.64 | -14.84 | 11.99 | 0.27 | 181.46 | 0.1807 | -621.0 | -389.8 | |
| 28.91 | -6.00 | 14.62 | -6.00 | -16.13 | 11.90 | 0.18 | 180.85 | 0.2028 | 1388.0 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -16.68 | 6.45 | -5.27 | 157.40 | 0.2302 | -707.0 | -506.6 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -16.64 | 6.08 | -5.64 | 155.94 | 0.2322 | -799.0 | -617.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -18.60 | 4.48 | -7.24 | 153.95 | 0.2733 | -804.0 | -648.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -19.05 | 4.33 | -7.39 | 154.26 | 0.2812 | -734.0 | -489.1 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -17.56 | 4.15 | -7.57 | 151.03 | 0.2606 | -903.0 | -673.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
